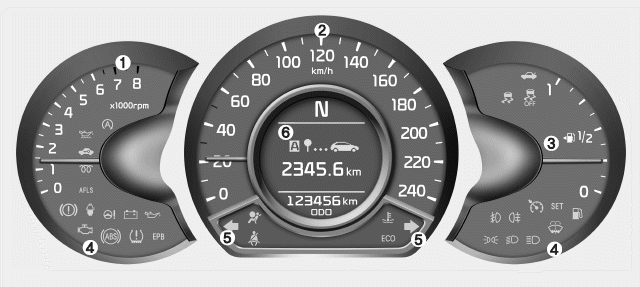

Kia Cee'd: Features of your vehicle / Instrument cluster (Normal vision)
1. Tachometer
2. Speedometer
3. Fuel gauge
4.Warning and indicator lights (if equipped)
5. Turn signal indicators
6. LCD display
- Instrument panel illumination
- Gauges
- Manual transaxle shift indicator
- Automatic transaxle shift position indicator
- Dual clutch transmission (DS mode) shift indicator
- Speed limiter indicator
- Odometer (km or mi.)
- Trip computer
