Kia Cee'd: ISG (Idle Stop and Go) system / Auto stop
To stop the engine in idle stop mode
1. Decrease the vehicle speed to less than 5 km/h (3 mph).
2. Shift into N (Neutral) position.
3. Release the clutch pedal.

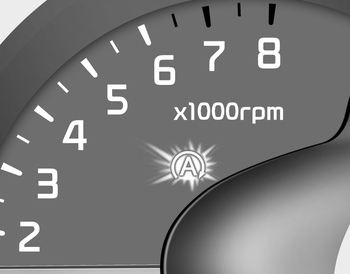

The engine will stop and the green AUTO
STOP(
) indicator on the instrument
cluster will illuminate.

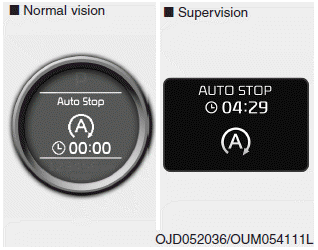

Also, a message "Auto Stop" will appear on the LCD display.
✽ NOTICE
You must reach a speed of at least 10 km/h (6 mph) since last idle stop.
✽ NOTICE
If you unfasten the seatbelt or open the driver's door (or engine hood) in auto stop mode, the following will happen:
- The ISG system will deactivate (the light on the ISG OFF button will illuminate).

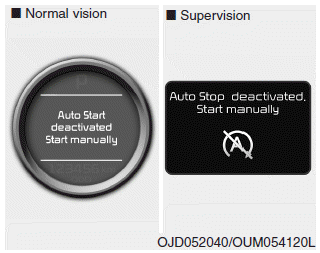

- A message "Auto Start Deactivated Start Manually" will appear on the LCD display.
