Kia Cee'd: Charging System / Battery Components and components location

Kia Cee'd JD Service Manual / Engine Electrical System / Charging System / Battery Components and components location

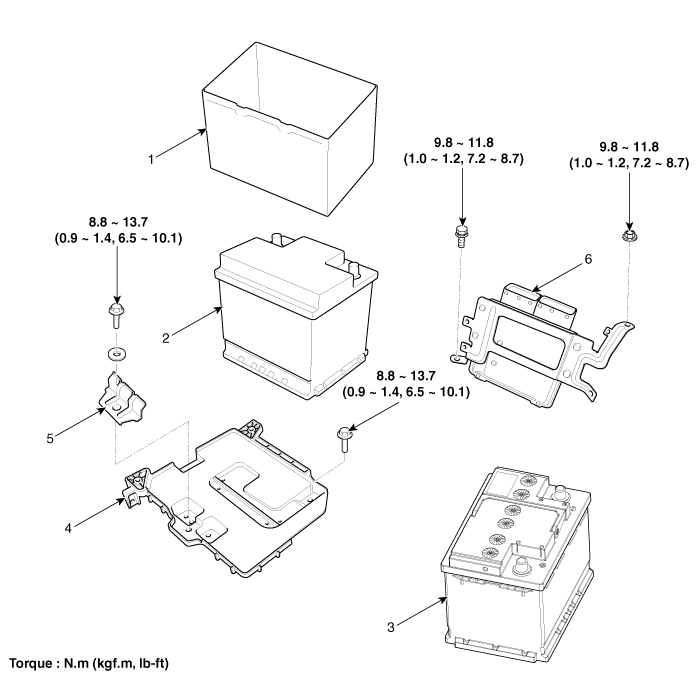

Components

1. Battery insulation pad
2. Battery (Non-ISG Type)
3. Battery (ISG Type)

4. Battery tray
5. Battery mounting bracket
6. ECM

Battery Description and operation

Description 1. The MF(Maintenance Free) battery is, as the name implies, totally maintenance free and has no removable battery cell caps. 2. ...

Battery Repair procedures

Removal 1. Disconnect the battery (-)terminal (A) and then (+)terminal (B). 2. Remove the air duct and air cleaner assembly. ...
