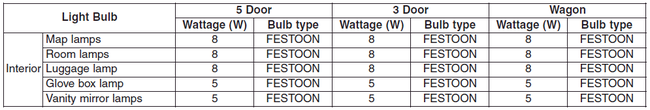

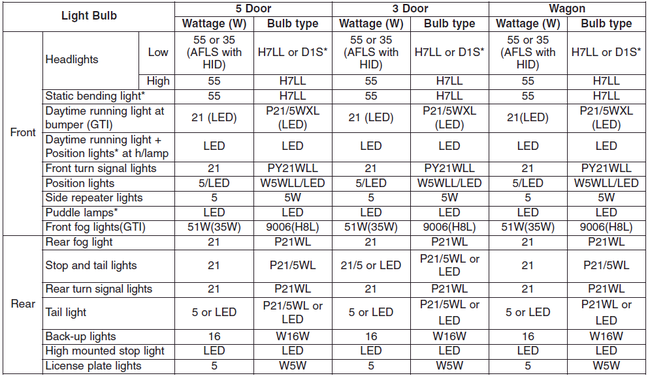

Kia Cee'd: Specifications & Consumer information / Bulb wattage
HID : High Intensity Discharge
AFLS : Adaptive Front-Lighting System
