Kia Cee'd: Clutch Release Cylinder / Components and components location

Kia Cee'd JD Service Manual / Clutch System / Clutch Release Cylinder / Components and components location

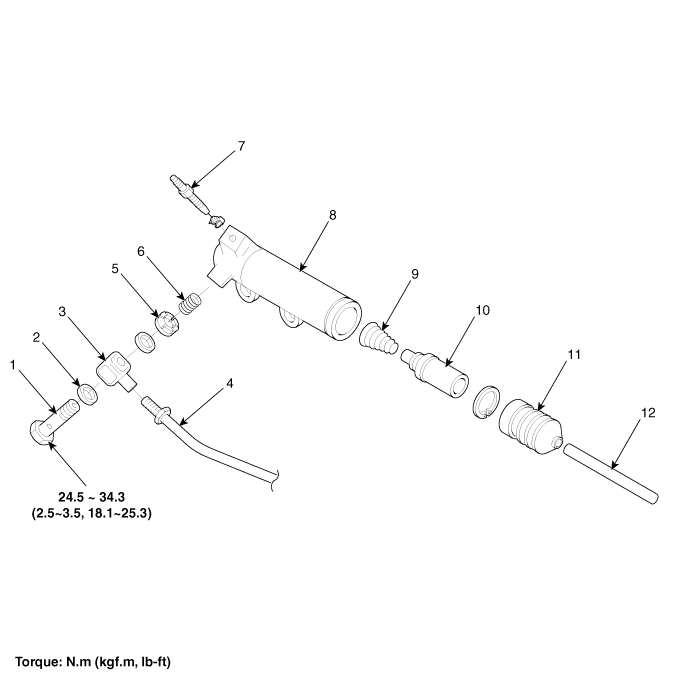

Components


1. Union bolt
2. Gasket
3. Tube joint
4. Clutch tube
5. Valve plate
6. Valve spring
7. Bleeder screw
8. Release cylinder
9. Return spring
10. Piston
11. Boot
12. Push rod

Clutch Release Cylinder
...

Repair procedures
Inspection 1. Check the clutch release cylinder for fluid leakage. 2. Check the clutch release cylinder boot for damage. ...
