Kia Cee'd: Rear Wiper/Washer / Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Rear Wiper/Washer / Components and components location

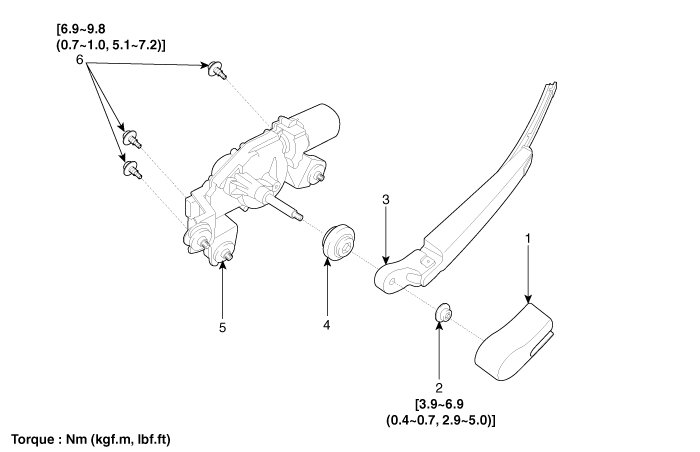

Component Location

1. Head cap
2. Rear wiper arm nut
3. Rear wiper arm & blade

4. Grommat
5. Rear wiper motor
6. Rear wiper motor bolt

Rear Wiper/Washer

...

Rear Wiper Motor Repair procedures

Inspection Rear Wiper Motor 1. Remove the 4P connector from the rear wiper motor. 2. Connect battery positive (+) and negative (-) c ...
