Kia Cee'd: Seat / Driver position memory system

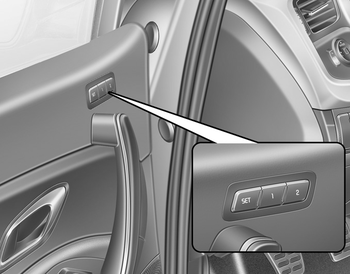

A driver position memory system is provided to store and recall the driver seat position with a simple button operation. By saving the desired position into the system memory, different drivers can reposition the driver seat based upon their driving preference. If the battery is disconnected, the position memory will be erased and the driving position should be restored in the system.
WARNING
Never attempt to operate the driver position memory system while the vehicle is moving. This could result in loss of control, and an accident causing death, serious injury, or property damage.
- Storing positions into memory using the buttons on the door
- Easy access function
- Headrest
- Seat warmer
- Seatback pocket
- Rear Seat Entry (For 3-door vehicle only)
Automatic adjustment
The driver’s seat can be adjusted by
using the control switches located on the
outside of the seat cushion. Before driving,
adjust the seat to the proper position
so as to easily control the ...
Storing positions into memory using
the buttons on the door
Storing driver’s seat positions
1. Shift the shift lever into P or N (for
Automatic transaxle) or Neutral (for
manual transaxle) while the engine
start/stop button is ON or ignition
switch ...
