Kia Cee'd: Heating and air conditioning / Fan speed control
The ignition switch must be in the ON position for fan operation.

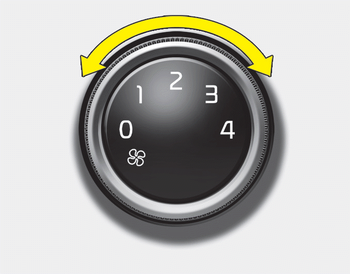

The fan speed control knob allows you to control the fan speed of the air flowing from the ventilation system. To change the fan speed, turn the knob to the right for higher speed or left for lower speed.
Setting the fan speed control knob to the “0” position turns off the fan.
Air intake control
The air intake control is used to select
the outside (fresh) air position or recirculated
air position.
To change the air intake control position,
press the control button.
Recirculated air ...
To turn off the blowers
To turn off the blowers, turn the fan
speed control knob to the "0" position. ...
