Kia Cee'd: Steering wheel / Flex steering wheel
The flex steering wheel controls steering effort as driver's preference or road condition.

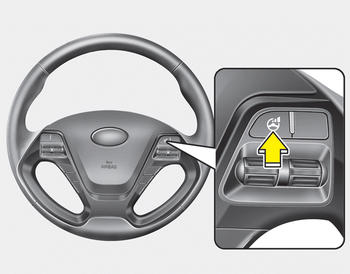

You can select the desired steering mode by pressing the steering mode button.
■ Normal vision
■ Supervision

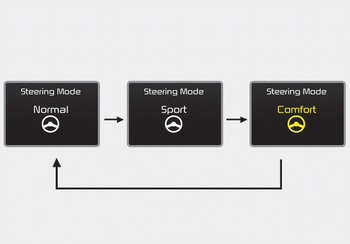

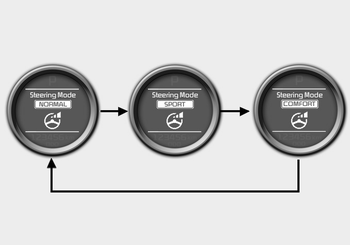

When the steering mode button is pressed, the selected steering mode will appear on the LCD display.
If the steering mode button is pressed within 4 seconds, the steering mode will change as above pictures.
If the steering wheel mode button is not pressed for about 4 seconds, the LCD display will change to the previous screen.
Horn
To sound the horn, press the horn symbol
on your steering wheel.
Check the horn regularly to be sure it
operates properly.
✽ NOTICE
To sound the horn, press the area indicated
by the horn ...
Normal mode
■ Normal vision
■ Supervision
The normal mode offers medium steering
effort. ...
