Kia Cee'd: Lighting System / Head Lamps Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Lighting System / Head Lamps Components and components location

Component

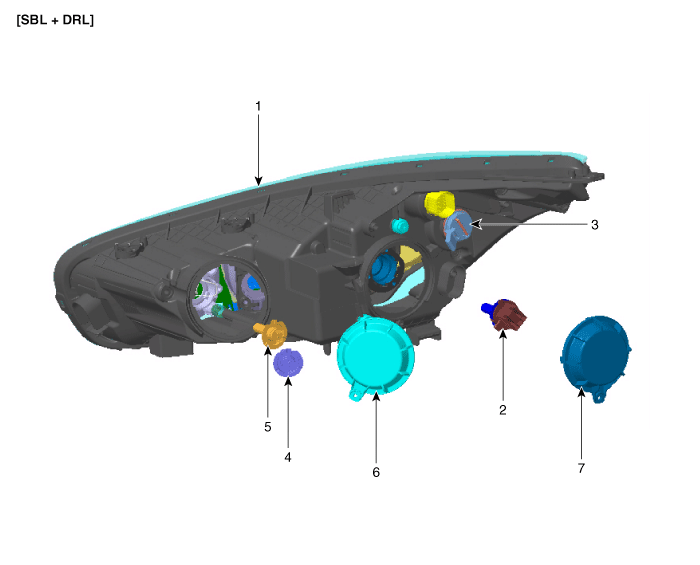

1. Head lamp assembly lens & housing
2. Head lamp low beam bulb
3. Turn signal lamp bulb
4. Position lamp bulb
5. Head lamp high beam bulb
6. Dust cap(High)
7. Dust cap(Low)

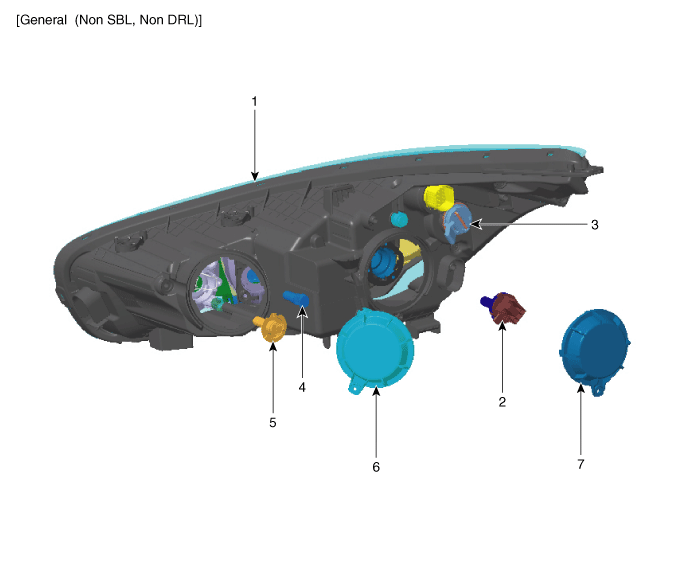

1. Head lamp assembly lens & housing
2. Head lamp low beam bulb
3. Turn signal lamp bulb
4. Position lamp bulb
5. Head lamp high beam bulb
6. Dust cap(High)
7. Dust cap(Low)
8. Static bending light

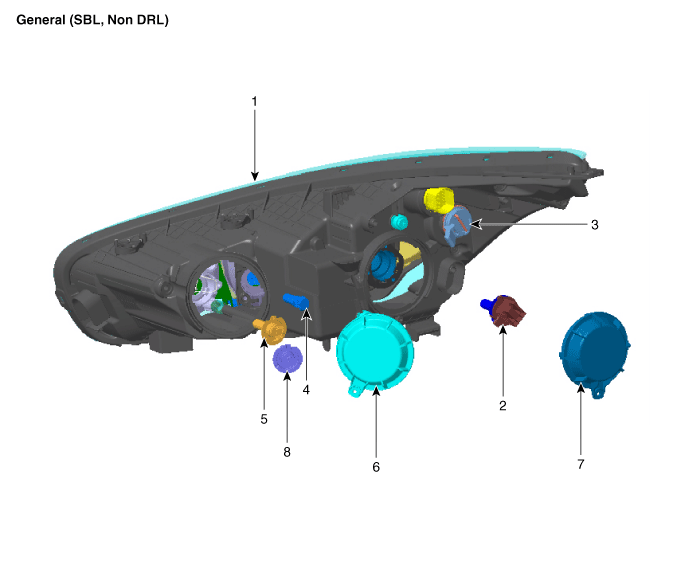

1. Head lamp assembly lens & housing
2. Head lamp low beam bulb
3. Turn signal lamp bulb
4. Static bending light
5. Head lamp high beam bulb
6. Dust cap(High)
7. Dust cap(Low)

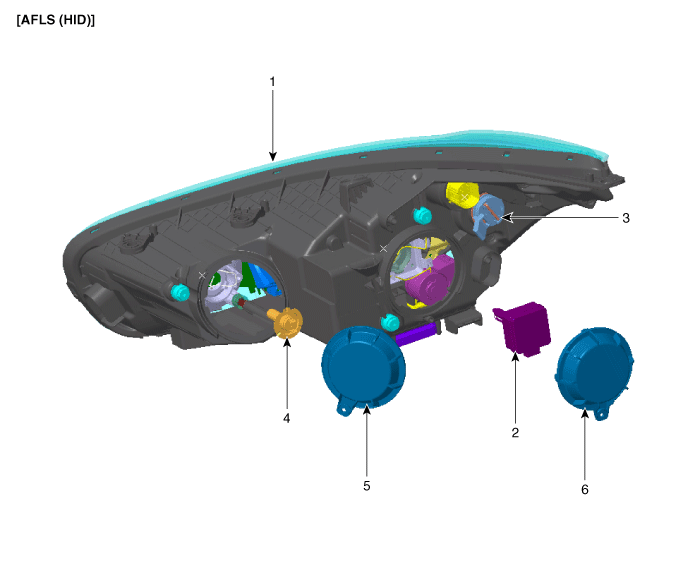

1. Head lamp assembly lens & housing
2. Head lamp low HID & ignitor
3. Turn signal lamp bulb
4. Head lamp high beam bulb
5. Dust cap(High)
6. Dust cap(Low)

Troubleshooting
Troubleshooting 1. The lamp switch inputs can be checked using the GDS. 2. To check the input value of lamp switch, select option " ...

Head Lamps Description and operation
Description and Operation HID Head Lamp 1. Bulb (1) Elements Xenon gas: Xenon gas activates the initial rea ...
