Kia Cee'd: Instrument cluster (Normal vision) / Instrument panel illumination

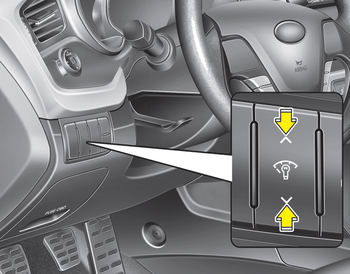

The instrument panel illumination intensity can be adjusted as follows:
- Ignition switch in the ON position
- Pressing the upper or lower part of the switch
The illumination intensity is shown on the instrument cluster LCD display.
Instrument cluster (Normal vision)
1. Tachometer
2. Speedometer
3. Fuel gauge
4.Warning and indicator lights (if equipped)
5. Turn signal indicators
6. LCD display ...
Gauges
...
Other information:
Kia Cee'd JD Service Manual: Heater Unit Components and components location
Component Location
Components
1. Heat Case (Left)
2. Heat Case (Right)
3. Separator
4. Defog Door
5. Vent Door
6. Vent Guide
7. Temp Door
8. Mode Control Actuator
9. Temperature Control Actuator (Left)
10. Temper ...
Kia Cee'd JD Service Manual: Gear Actuator Motor Description and operation
Description
The gear actuator motor is mounted on the complete shaft.
The gear actuator motor comprises the shift motor and select motor.
The gear actuator shift motor and select motor receive signals from the Transmission
Control Module (TCM) to control the gear.
...
