To install or remove a roof carrier, you can use the mounting bracket and cover on the roof.
When you install a roof carrier, use the following procedure.

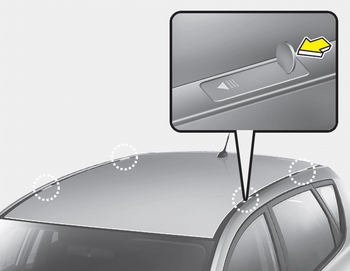

1. Insert a slim tool(coin or flat blade driver) into the slot and slide the cover toward the arrow on the cover.
WARNING
Use a coin or flat blade driver when you remove the roof carrier cover. If you use your fingernail, it may damage your fingernail.

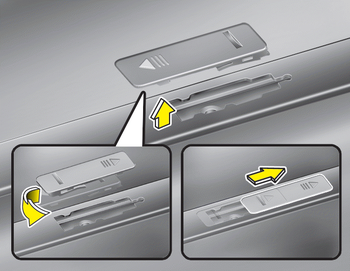

2. Rotate the cover half way and insert the cover on the roof hole as the illustration.
✽ NOTICE
To prevent loosing the roof carrier cover, install the cover on the roof before you install the roof carrier.
3. After using the roof carrier, install the cover back on the roof in the reverse order.
✽ NOTICE
If the vehicle is equipped with a sunroof, be sure not to position cargo onto the roof in such a way that it could interfere with sunroof operation.
