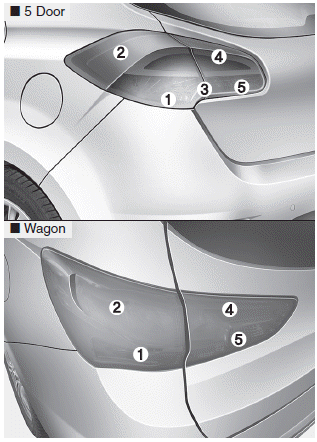

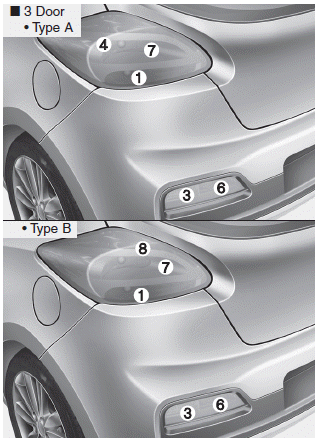

(1) Rear turn signal light
(2) Stop/tail light
(3) Back-up light
(for 3 Door and 5 Door)
(4) Tail light or stop/tail light
(for LED type)
(5) Rear fog light (for 5 Door), Rear fog
light (Driver’s side) or back-up light
(Passenger’s side), (for wagon)
(6) Rear fog light (for 3 Door)
(7) Stop light (for 3 Door)
(8) Tail light (for 3 Door)
Kia Cee'd JD Service Manual: IMS Control Switch Repair procedures
Inspection
1.
Remove the IMS control switch connector (A).
2.
With the IMS control switch in each position, make sure that continuity
exists between the terminals below. If continuity is not as specified,
replace the I ...
Kia Cee'd JD Service Manual: Special service tools
Special Service Tools
Tool (Number and name)
Illustration
Use
09861-31100
Sealany cut-out tool
Cutting windshield sealant
(use with 09861-31200)
09861-31200
Seala ...
