Kia Cee'd: Cooling System / Thermostat Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cooling System / Thermostat Components and components location

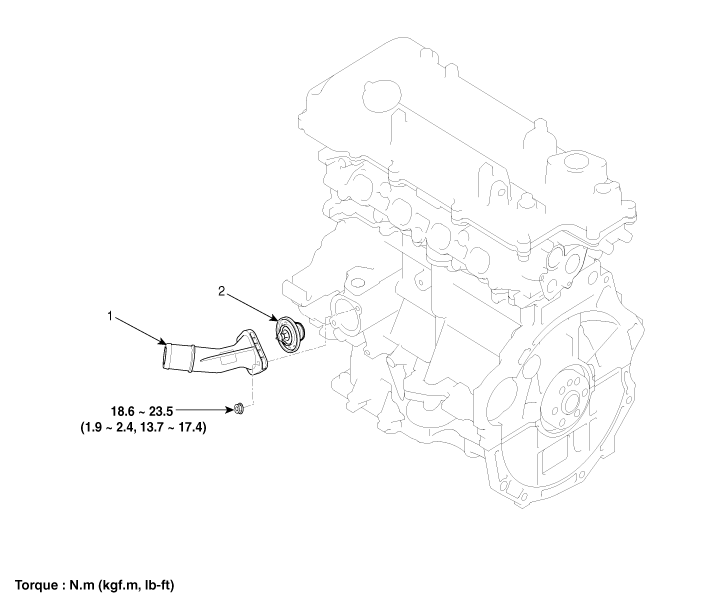

Components


1. Water inlet fitting
2. Thermostat
