Kia Cee'd: Automatic climate control system / To defog inside windshield

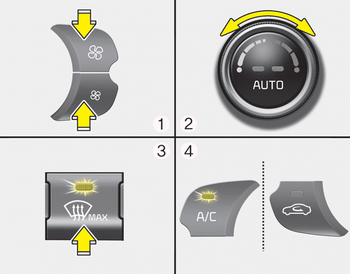

1. Set the fan speed to the desired speed.
2. Select desired temperature.
3. Press the
button.
4. The air conditioning will turn on according to the detected ambient temperature and outside (fresh) air position will be selected automatically.
If the air conditioning is not selected
automatically, adjust the corresponding
button manually. If the position is
selected, lower fan speed is adjusted to a
higher fan speed.
To defrost outside windshield
1. Set the fan speed to the highest position.
2. Set the temperature to the hottest
(HIGH) position.
3. Press the button.
4. The air conditioning will turn on
according to the detected ambie ...
