Kia Cee'd: Tire Pressure Monitoring System / Troubleshooting
|

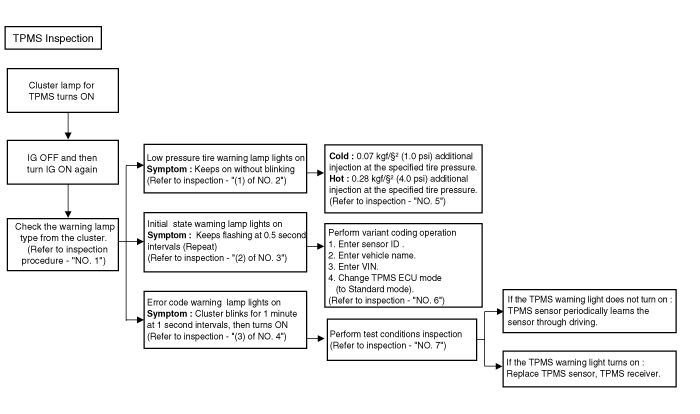

Find the inspection number by referring to the table above.
The following content is irrelevant of the inspection procedure.
|
| 1. |
Warning lamp types
| • |
Keeps on without blinking : Low pressure tire warning lamp
|
| • |
Flashes at 0.5 second intervals constantly : Initial state warning
lamp
|
| • |
Cluster blinks for 1 minute at 1 second intervals, then turns
ON : Error code warning lamp
|
|
Turn IG OFF and then IG ON again to check the warning light
type.
|
|
| 2. |
(1) Check the warning lamp state.
| • |
Check the vehicle warning lamp state.
|
| • |
Check if the warning lamp state is caused by tire low pressure.
Symptom : Keeps on without blinking
|
|
| 3. |
(2) Check the warning lamp state.
| • |
Check the vehicle warning lamp state.
|
| • |
Check if the warning lamp state is caused by the initial state
(virgin mode) of TPMS receiver.
Symptom : Flashes at 0.5 second intervals constantly.
|
|
| 4. |
(3) Check the warning lamp state.
| • |
Check the vehicle warning lamp state.
|
| • |
Check if the warning lamp state is caused by error code (TPMS
receiver & TPMS sensor failure).
Symptom : Cluster blinks for 1 minute at 1 second intervals,
then turns ON.
|
|
| 5. |
Low tire pressure warning lamp
Cold : Vehicle kept for more than 60 minutes after stopping.
→ 0.07 kgf/cm² (1.0 psi) additional injection at the specified tire
pressure.
Hot : Driven vehicle
→ 0.28 kgf/cm² (4.0 psi) additional injection at the specified tire
pressure.
|
In case the warning lamp fails to turn OFF after injecting tire
pressure, disconnect the GDS and drive less than 1 km at 25
km/h.
|
|
| 6. |
Inspect initial state warning lamp
| A. |
TPMS warning lamp
(1) Check the TPMS warning lamp status.
(2)Flashes at 0.5 second intervals constantly. -> Initial state
warning lamp
|
Turn IG OFF and then IG ON again to check the warning
lamp type.
|
|
| B. |
Items to check in case of blinking warning lamp
(1). Enter sensor ID.
(Refer to TPMS Receiver - "Repair procedures")
(2). Enter vehicle name.
(Refer to TPMS Receiver - "Repair procedures")
(3). Enter VIN.
(Refer to TPMS Receiver - "Repair procedures")
(4). Change TPMS ECU mode (to Standard mode).
|
|
| 7. |
DTC checklist for performance test.
List
|
symptoms
|
Inspection items
|
Detailed checklist
|
Component/parts
|
C1312(FL)
C1313(FR)
C1314(RL)
C1315(RR)
|
TPMS sensor receive error.
|
Sensor RF transmission state
|
Confirm sensor RF transmission
Check sensor DTC
Inspect Ssnsor battery
|
TPMS Sensor
Vehicle electronic units noise
Vehicle operating conditions
|
C1332(FL)
C1333(FR)
C1334(RL)
C1335(RR)
|
Sensor internal failure
|
Inspect sensor RF transmission
Sensor battery voltage
|
Check sensor RF transmission
Check sensor battery (GDS)
|
TPMS Sensor
|
C1662
|
Auto learning failure
|
Sensor RF transmission state
Inspect EMS vehicle speed (VS)
Inspect vehicle noise
|
Confirm sensor RF transmission
Inspect sensor battery
Inspect EMS vehicle speed (VS)
Inspect vehicle electronic unit noise
|
TPMS Sensor
Vehicle electronic units noise
Vehicle operating condition
EMS vehicle speed signal
|
C1663
|
Auto learning failure
|
Sensor RF transmission state
Inspect EMS vehicle speed (VS)
Inspect vehicle noise
|
Confirm sensor RF transmission
Inspect sensor battery
Inspect EMS vehicle speed (VS)
Inspect vehicle electronic unit noise
|
TPMS Sensor
Vehicle electronic units noise
Vehicle operating condition
EMS vehicle speed signal
|
| •
|
Be sure to check DTC.
(Refer to DTC manual - "Tire Pressure Monitoring")
|
| •
|
If the TPMS warning light does not turn on : TPMS sensor
periodically learns the sensor through driving.
|
| •
|
If the TPMS warning light turns on : Replace TPMS sensor,
TPMS receiver.
|
|
|
