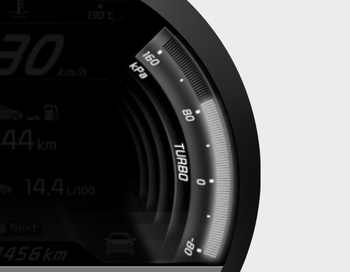

Kia Cee'd: Gauges / Turbo boost pressure gauge (for T-GDI engine)
It shows instantaneous change of the turbo boost pressure.
Engine torque gauge
(for T-GDI engine)
It shows instantaneous change of the
Torque by rpm. ...
Engine coolant temperature gauge
■ Type A
■ Type B
This gauge shows the temperature of the
engine coolant when the ignition switch
is ON.
Do not continue driving with an overheated
engine. If your vehicle overheats, ...
