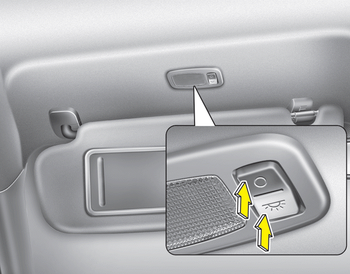

Kia Cee'd: Interior light / Vanity mirror lamp
Push the switch to turn the light on or off.
: The lamp will turn on if
this button
is pressed.
: The lamp will turn off
if this button
is pressed.
CAUTION - Vanity mirror lamp
Always have the switch in the off position when the vanity mirror lamp is not in use. If the sunvisor is closed without the lamp off, it may discharge the battery or damage the sunvisor.
Room lamp
■ Type A
Type A
Press the button to turn the light on or off.
If the map lamp turns on by the map
lamp switch, the room lamp will turn on.
■ Type B
Type B
Press the switch to turn on ...
Luggage room lamp
The luggage room lamp comes on when
the tailgate is opened. ...
