Kia Cee'd: How the system works (Exit mode) / 1. Activate Smart Parking Assist System

Kia Cee'd JD Owners Manual / Features of your vehicle / Smart Parking Assist System (SPAS) / How the system works (Exit mode) / 1. Activate Smart Parking Assist System

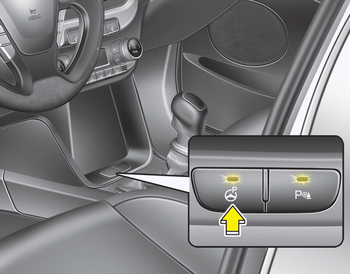

Press the Smart Parking Assist System button (the button indicator will illuminate).
The Parking Assist System will be activated (the button indicator will illuminate). A warning sound will be heard if an obstacle is detected.
Press the Smart Parking Assist System button again for more than 2 seconds to turn off the system.
The Smart Parking Assist System defaults to the OFF position whenever the ignition switch is turned on.

How the system works (Exit mode)

The Exit Mode operates in the below condition: When vehicle speed is below 5 km/h the first time after the engine has been started. After parallel parking is completed with the Smart ...

2. Select Exit Mode

Select the mode by pressing the Smart Parking Assist System button with the shift lever in P (Park) or N (Neutral) and the brake pedal depressed. The left side parallel mode is selecte ...
