Removal [LHD]
1.
Turn the ignition switch OFF.
2.
Pull up the lock of the HECU connector (A), and then disconnect the connector.

3.
Remove the brake fluid from the master cylinder reservoir with a syringe.

•
Be sure to completely remove foreign substances from around brake fluid reservoir and cap before opening the reservoir cap. If not, it may cause contamination of brake fluid and deterioration in braking performance.
•
Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
4.
Disconnect the brake tubes from the HECU by unlocking the nuts counterclockwise with a spanner.
Tightening torque:
12.7 ~ 16.7 N.m (1.3 ~ 1.7 kgf.m, 9.4 ~ 12.3 lb-ft)

5.
Loosen the HECU bracket nuts (A), and then remove HECU and bracket.
Tightening torque :
16.7 ~ 25.5 N.m (1.7 ~ 2.6 kgf.m, 12.3 ~ 18.8 lb-ft)


1)
Never attempt to disassemble the HECU.
2)
Never shock the HECU.
6.
Remove the 3 bolts, and then remove the bracket from HECU.
Tightening torque :
7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)
Removal [RHD]
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the battery.
(Refer to Engine Electrical system-"Battery")
3.
Remove the ECM.
(Refer to Engine control / Fuel System -"Engine Control Module")
4.
Pull up the lock of the HECU connector (A), and then disconnect the connector.

5.
Remove the brake fluid from the master cylinder reservoir with a syringe.

•
Be sure to completely remove foreign substances from around brake fluid reservoir and cap before opening the reservoir cap. If not, it may cause contamination of brake fluid and deterioration in braking performance.
•
Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
6.
Disconnect the brake tubes from the HECU by unlocking the nuts counterclockwise with a spanner.
Tightening torque :
12.7 ~ 16.7 N.m (1.3 ~ 1.7 kgf.m, 9.4 ~ 12.3 lb-ft)

7.
Loosen the HECU bracket nuts (A), and then remove HECU and bracket.
Tightening torque :
16.7 ~ 25.5 N.m (1.7 ~ 2.6 kgf.m, 12.3 ~ 18.8 lb-ft)


1)
Never attempt to disassemble the HECU.
2)
Never shock the HECU.
8.
Remove the 3 bolts, and then remove the bracket from HECU.
Tightening torque :
7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)
Installation
1.
Install in the reverse order of removal.
2.
Tighten the HECU mounting bolts and nuts to the specified torque.
3.
After installation, bleed the brake system.
(Refer to ABS bleeding)
4.
When you have replaced the HECU always perform variant coding.
Variant coding
1.
Connect the GDS to the data link connector.
2.
Turn the ignition "ON".
3.
Select vehicle name and system.
4.
Select the variant coding.
5.

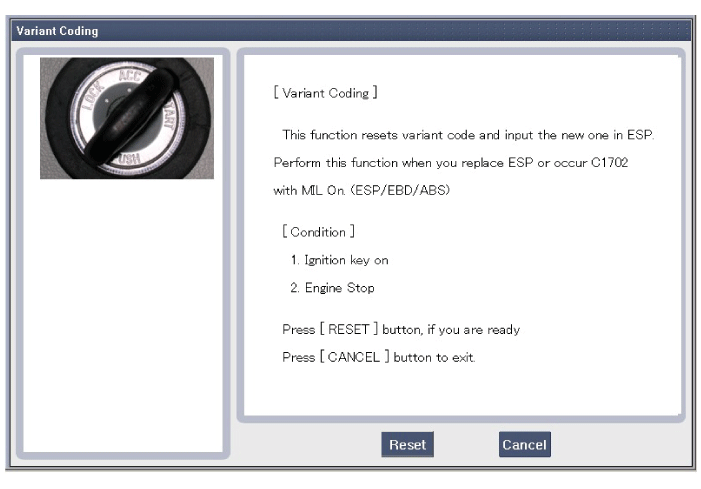

Perform variant coding according to the instructions on the screen.

6.
Ignition "OFF" and then ignition "ON".
7.
The variant coding is completed.
