Kia Cee'd: LCD display information / Align steering wheel

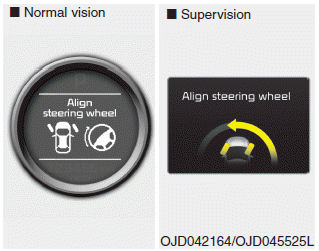

If you start the engine when the steering wheel is turned 90 degrees to the left (or right) after a couple of seconds, “Align steering wheel” illuminates on the LCD display for 5 seconds.
Turn the steering wheel to the right (or left) and make it turned to the left (or right) less than 30 degrees.
