Kia Cee'd: Charging System / Alternator Components and components location
Kia Cee'd JD Service Manual / Engine Electrical System / Charging System / Alternator Components and components location

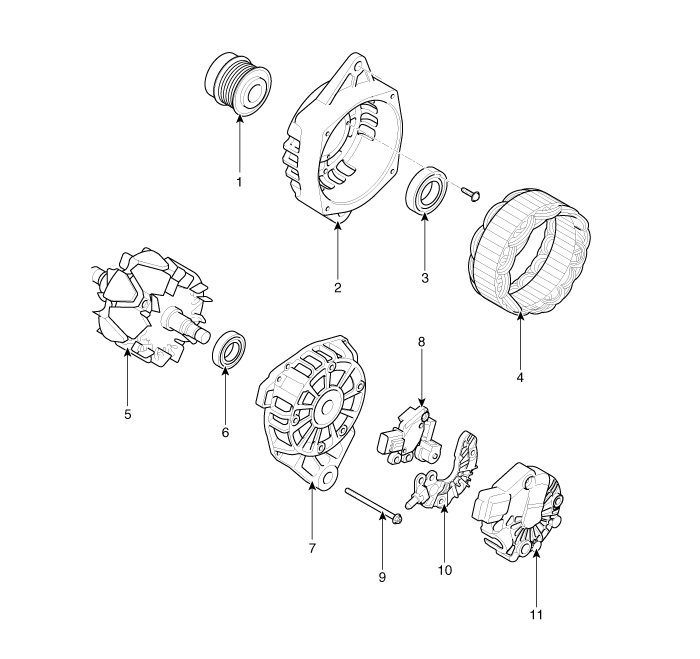

| Components |
| 1. OAD
(Overrunning Alternator Decoupler) 2. Front Bracket 3. Front Bearing 4. Stator 5. Rotor 6. Rear Bearing |
7. Rear
Bracket 8. Brush Holder Assembly 9. Through Bolt 10. Rectifier Assembly 11. Rear Cover |
Alternator Specifications
Specification
Alternator [Non-ISG type]
Item
Specification
Rated voltage
13.5V, 90A
Speed in use
...
Alternator Schematic diagrams
Circuit Diagram
...
