Kia Cee'd: Electric parking brake (EPB) / Applying the parking brake
To apply the EPB (electric parking brake):

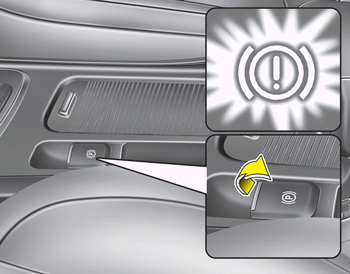

Pull up the EPB switch. Make sure the warning light comes on.
✽ NOTICE
On a steep incline or when pulling a trailer if the vehicle does not stand still, do as follows:
1. Apply the EPB.
2. Pull up the EPB switch for more than 3 seconds.
CAUTION
Do not operate the parking brake while the vehicle is moving except in an emergency situation. It could damage the vehicle system and endanger driving safety.
Releasing the parking brake
To release the EPB (electric parking
brake), press the EPB switch in the following
condition:
Have the ignition switch or engine
start/stop button in the ON position.
Depress the brake ...
