Kia Cee'd: Luggage rail system (wagon) / Applying the shackle on the guide rail

Kia Cee'd JD Owners Manual / Features of your vehicle / Interior features / Luggage rail system (wagon) / Applying the shackle on the guide rail

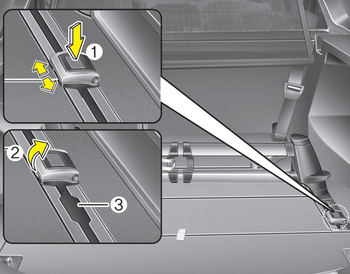

Put the shackle (A) in the position where the shackle is put in the rail.
To move the shackle, press the button (1) and move the shackle along the rail.
Make sure the shackle is clicked into place.
To fix the luggage, pull up the hook (2) in the middle cargo bay.
Now you can mount e.g. belt to fix the luggage in the hook.
The shackle cannot be used in the position where the shackle is put in and out of the rail (3).

CAUTION

Tensile force : max. 30 kgf. for 1 shackle

Build in segmentation bar

Put both pillars (A) from the segmentation bar in the openings from the rail. To move the segmentation bar, put your hand on the side of the pillar and push down the lever arm (B). Mak ...

Shopping bag holder

CAUTION Do not hang a bag weighing more than 3 kg (7 lbs.). It may cause damage to the shopping bag holder. Do not hang the frail objects when you drive rough road, the objects ...
