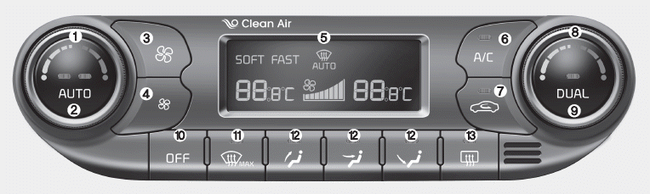

Kia Cee'd: Features of your vehicle / Automatic climate control system
1. Driver's temperature control knob
2. AUTO (automatic control) button
3. Fan speed control button (Higher speed)
4. Fan speed control button (Lower speed)
5. Climate control display
6. Air conditioning button
7. Air intake control button
8. Passenger's temperature control knob
9. Dual temperature control selection button
10. OFF button
11. Front windshield defroster button
12. Mode selection button
13. Rear window defroster button
- Automatic heating and air conditioning
- Manual heating and air conditioning
- System operation
- Climate control air filter
- Checking the amount of air conditioner refrigerant and compressor lubricant
Checking the amount of air conditioner
refrigerant and compressor
lubricant
When the amount of refrigerant is low,
the performance of the air conditioning is
reduced. Overfilling also has a bad influence
on the air conditioning system.
Therefore, if abnormal operation ...
Automatic heating and air conditioning
The automatic climate control system is
controlled by simply setting the desired
temperature.
Soft mode
Fast mode
You can choose either the soft mode or
fast mode to select the fan speed. ...
