Kia Cee'd: Remote keyless entry / Battery replacement

A battery should last for several years, but if the transmitter or smart key is not working properly, try replacing the battery with a new one. If you are unsure how to use or replace the battery, we recommend that you contact an authorized Kia dealer.

Type A

1. Insert a slim tool into the slot and gently pry open the cover.

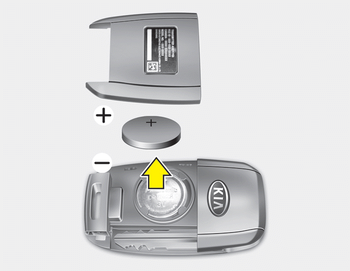

2. Replace the battery with a new battery (CR2032). When replacing the battery, make sure the battery position.

3. Install the rear cover.

Type B

1. Insert a slim tool into the slot and gently pry open the cover.

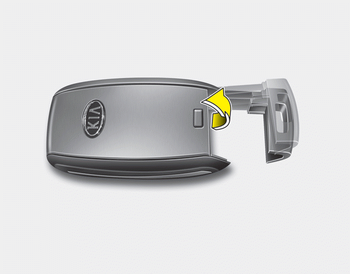

2. Pull the smart key module out.

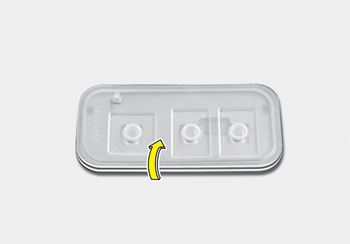

3. Turn the smart key module over.

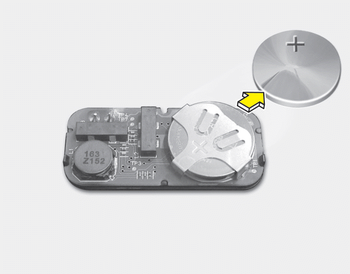

4. Push the battery out from the battery holder.

5. Replace the battery with a new battery (CR2032). When replacing the battery, make sure the battery position.

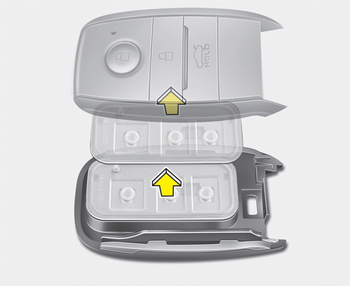

6. Install the battery in the reverse order of removal.

For transmitter or smart key replacement, we recommend that you contact an authorized Kia dealer.

CAUTION

CAUTION

An inappropriately disposed battery can be harmful to the environment and human health.

Dispose the battery according to your local law(s) or regulation.

Transmitter precautions
✽ NOTICE The transmitter will not work if any of following occur: The ignition key is in ignition switch. You exceed the operating distance limit (about 10 m [30 feet]). The battery in ...
