Kia Cee'd: Wiper blades / Blade replacement
When the wipers no longer clean adequately, the blades may be worn or cracked, and require replacement.
CAUTION
To prevent damage to the wiper arms or other components, do not attempt to move the wipers manually.
CAUTION
The use of a non-specified wiper blade could result in wiper malfunction and failure.
Front windshield wiper blade

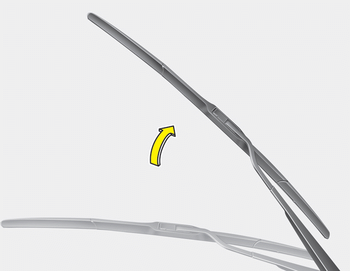

1. Raise the wiper arm.
CAUTION
Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

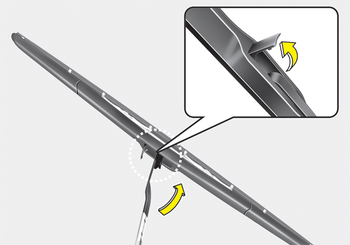

2. Turn the wiper blade clip. Then lift up the blade clip.

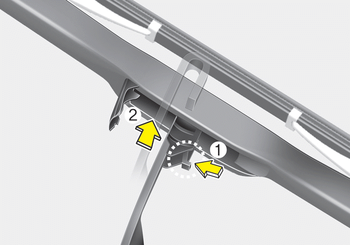

3. Push the clip (1) and push up the wiper arm (2).

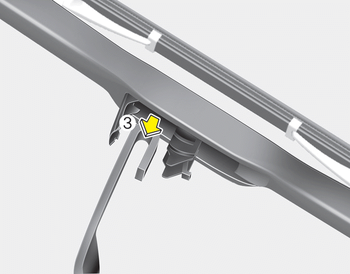

4. Push down the wiper arm (3) and install the new blade assembly in the reverse order of removal.
5. Return the wiper arm on the windshield.
Rear window wiper blade

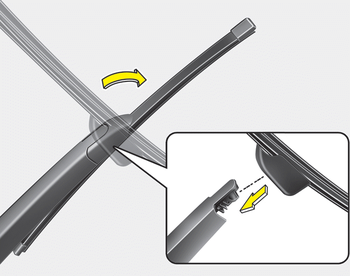

1. Raise the wiper arm and pull out the wiper blade assembly.

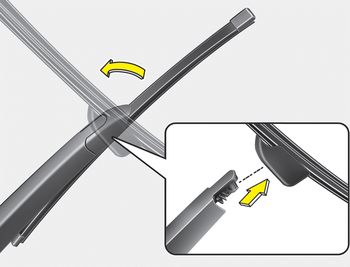

2. Install the new blade assembly by inserting the center part into the slot in the wiper arm until it clicks into place.
3. Make sure the blade assembly is installed firmly by trying to pull it slightly.
To prevent damage to the wiper arms or other components, we recommend that the wiper blade be replaced by an authorized Kia dealer.
Blade inspection
✽ NOTICE
Commercial hot waxes applied by automatic
car washes have been known to
make the windshield difficult to clean.
Contamination of either the windshield or
the wiper blades with for ...
