Kia Cee'd: Front Suspension System / Components and components location

Kia Cee'd JD Service Manual / Suspension System / Front Suspension System / Components and components location

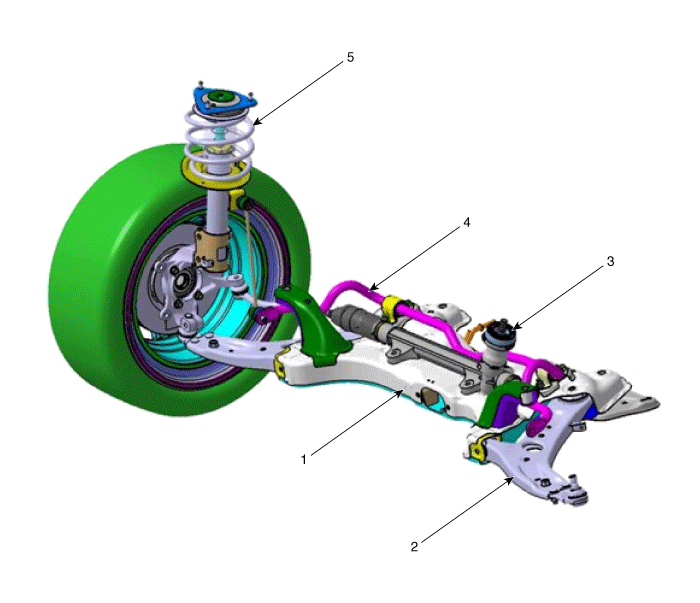

Components Location

1. Sub frame
2. Lower arm
3. Steering gearbox

4. Stabilizer bar
5. Front strut assembly

Front Suspension System

...

Front Strut Assembly Components and components location

Components 1. Strut assembly 2. Insulator 3. Strut bearing 4. Spring upper pad 5. Coil spring 6. Dust cover 7. Spring lower pad ...
