Kia Cee'd: Rear Door / Components and components location

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Rear Door / Components and components location

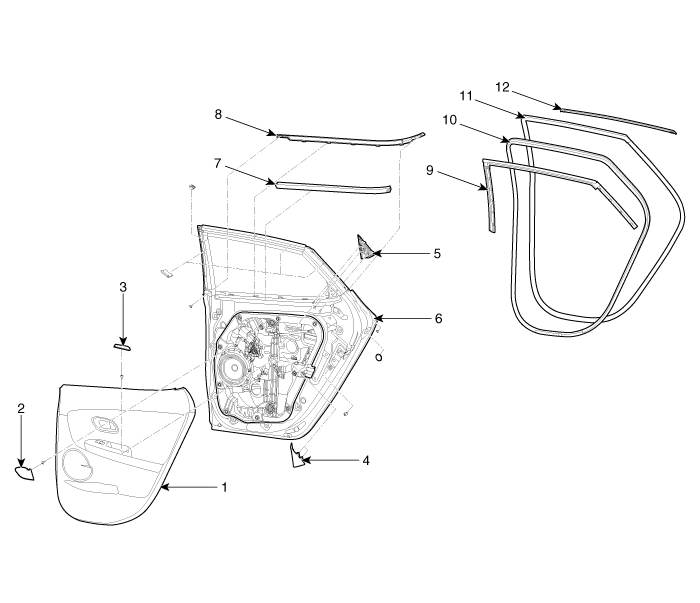

Components


1. Rear door tirm
2. Rear door inside handle housing
3. Rear door pull handle cap
4. Rear door delta inner cover
5. Rear door delta moulding
6. Rear door panel
7. Rear door belt inside weatherstrip
8. Rear door belt outside weatherstrip
9. Rear door upper opening weatherstrip
10. Rear door body side weatherstrip
11. Rear door side weatherstrip
12. Rear door frame moulding
