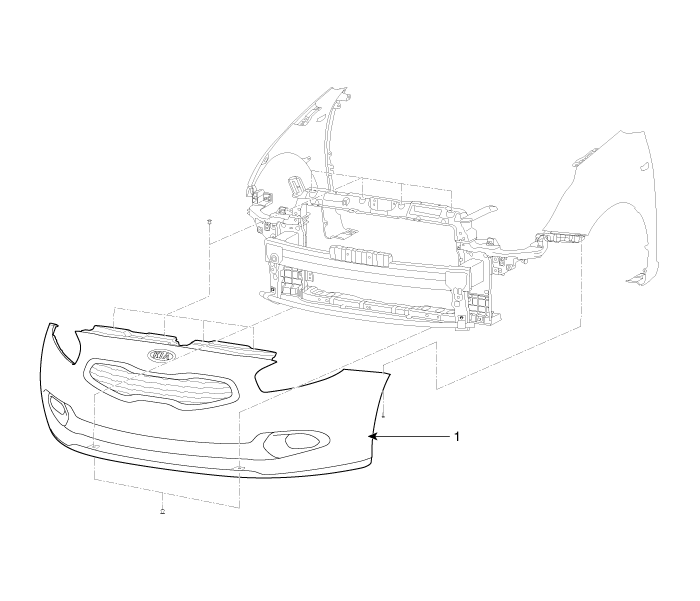

Components (1)

[5Door]

1. Front bumper cover

Components (2)

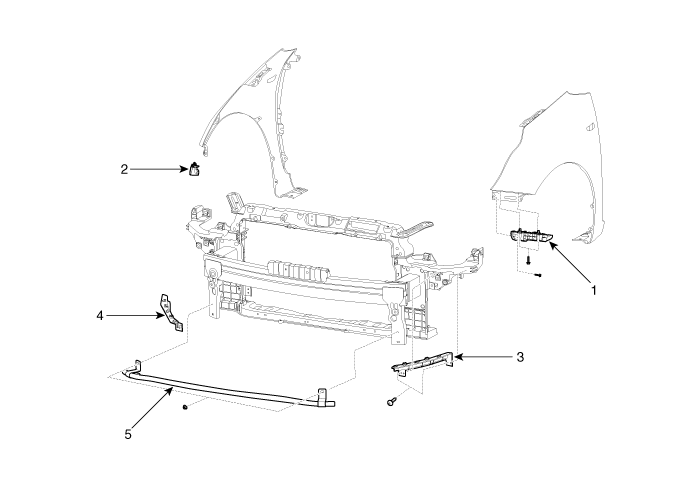

[5Door]

1. Front bumper side bracket [LH]
2. Front bumper side bracket [RH]
3. Front bumper upper bracket [LH]

4. Front bumper upper bracket [RH]
5. Front bumper lower stiffner

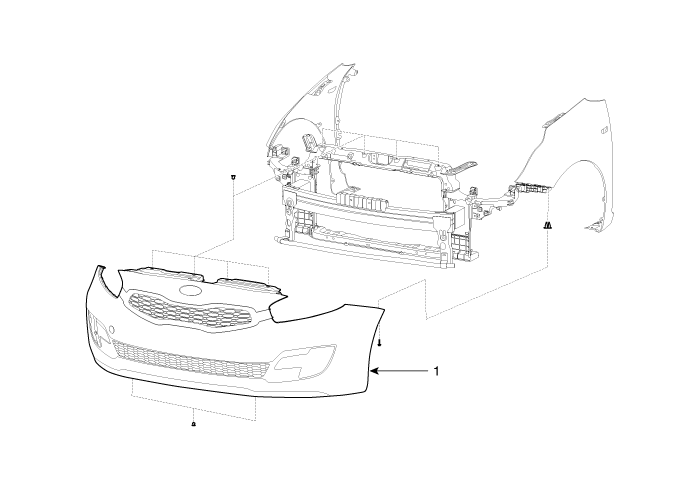

Components (3)

[3Door]

1. Front bumper cover

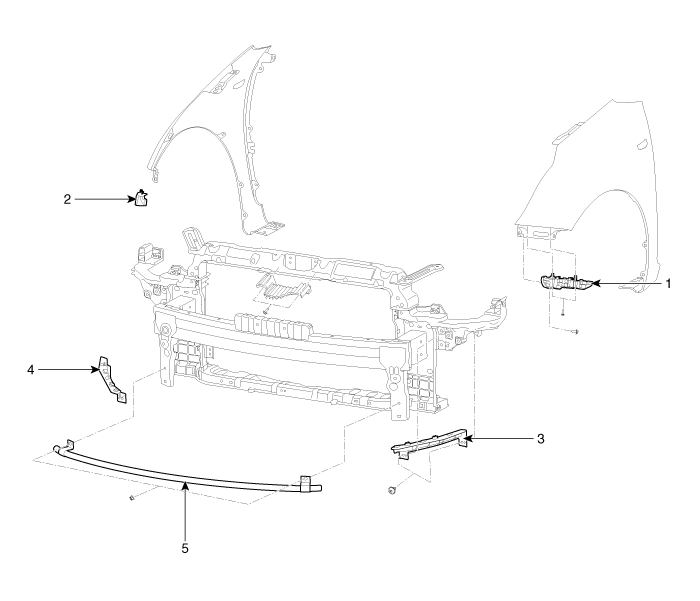

Components (4)

[3Door]

1. Front bumper side bracket [LH]
2. Front bumper side bracket [RH]
3. Front bumper upper bracket [LH]

4. Front bumper upper bracket [RH]
5. Front bumper lower stiffner
