Kia Cee'd: Smart Key System / Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Smart Key System / Components and components location

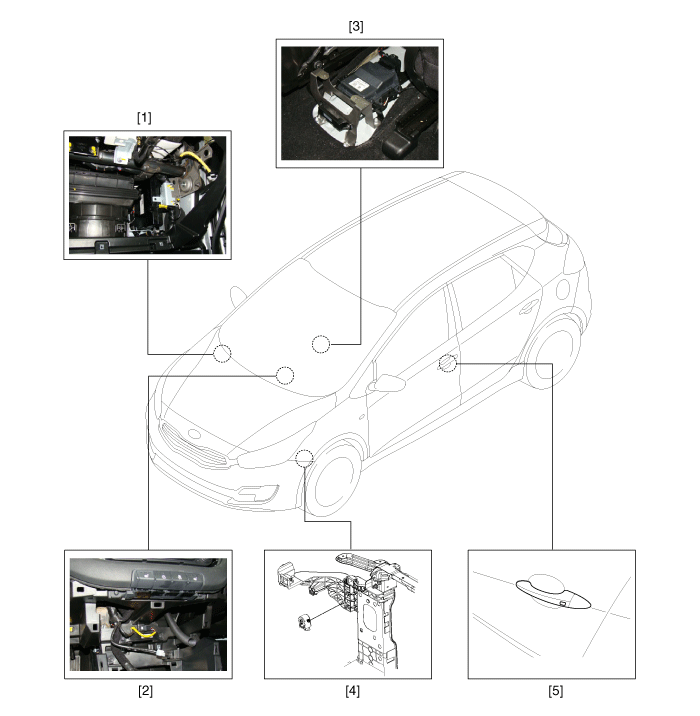

Component Location (1)

1. Smart key unit
2. Interior antenna 1
3. Interior antenna 2

4. Buzzer
5. Door outside handle

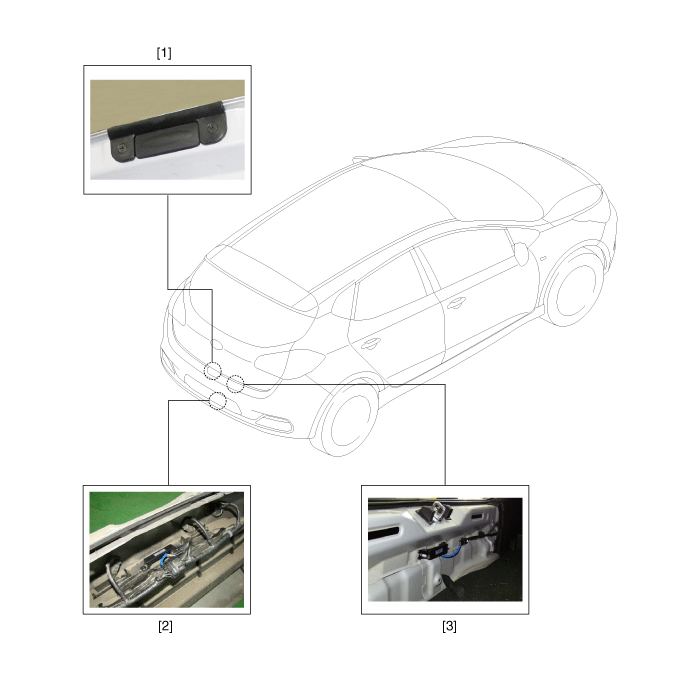

Component Location (2)

1. Tailgate open switch
2. Bumper antenna

3. Tailgate antenna

Specifications

Specification Smart Key Unit Items Specification Rated voltage DC 12V Operating voltage DC ...

Description and operation

Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote co ...
