Kia Cee'd: Dual Clutch Transmission Assembly / Dual Clutch Transmission(DCT) Components and components location

Kia Cee'd JD Service Manual / Dual Clutch Transmission(DCT) System / Dual Clutch Transmission Assembly / Dual Clutch Transmission(DCT) Components and components location

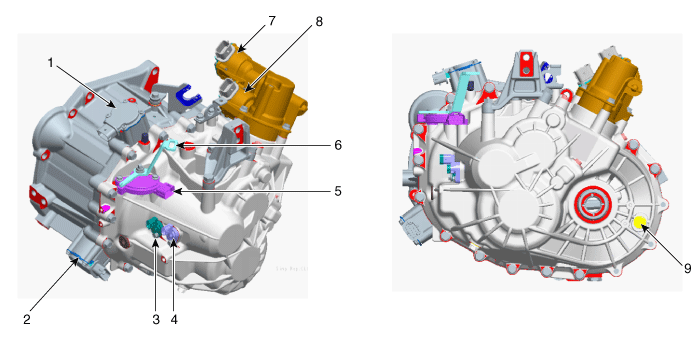

Components

1. Odd clutch actuator motor
2. Even clutch actuator motor
3. Input shaft speed sensor 2
4. Intput shaft speed sensor 1
5. Inhibitor switch

6. Manual control lever
7. Shift motor
8. Select motor
9. Filler plug

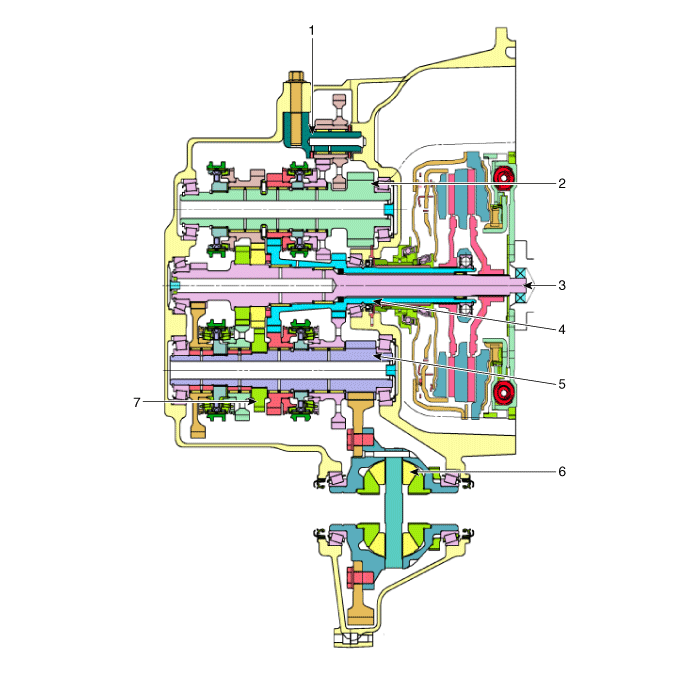

Cross Sectional Drawing

1. Reverse Idler shaft
2. 5/6/R output shaft
3. 1/3/5 input shaft
4. 2/4/6/R input shaft

5. 1/2/3/4 output shaft
6. Differential assembly
7. Parking gear

Dual Clutch Transmission Assembly

...

Dual Clutch Transmission(DCT) Repair procedures
