Kia Cee'd: Your vehicle at a glance / Engine compartment

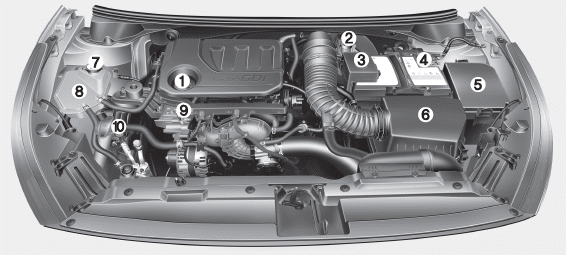

■ Gasoline engine (GDI)

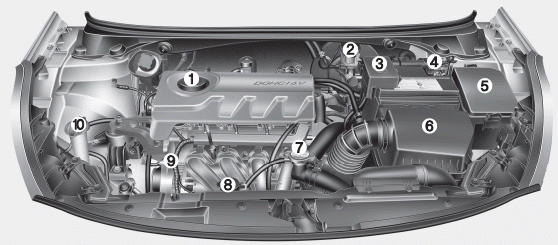

■ Gasoline engine (MPI)
1. Engine oil filler cap
2. Brake/clutch fluid reservoir
3. Positive battery terminal
4. Negative battery terminal
5. Fuse box
6. Air cleaner
7. Radiator cap
8. Engine coolant reservoir
9. Engine oil dipstick
10. Windshield washer fluid reservoir

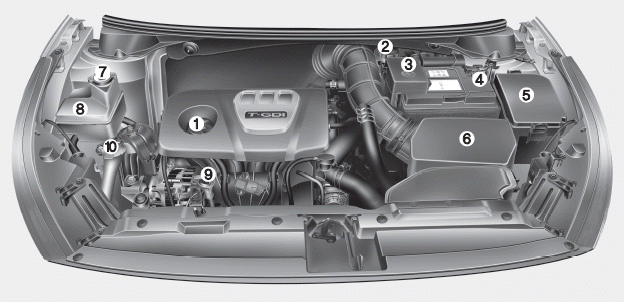

■ Gasoline engine (Gamma 1.6 T-GDI)
1. Engine oil filler cap
2. Brake/clutch fluid reservoir
3. Positive battery terminal
4. Negative battery terminal
5. Fuse box
6. Air cleaner
7. Radiator cap
8. Engine coolant reservoir
9. Engine oil dipstick
10. Windshield washer fluid reservoir

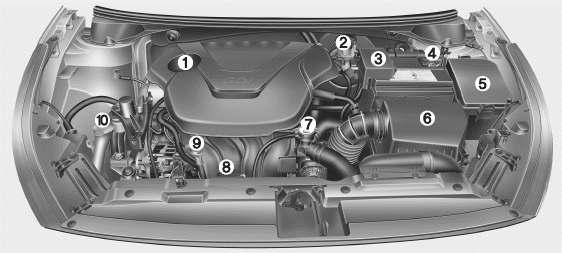

■ Gasoline Engine (Kappa 1.4 MPI)
■ Gasoline Engine (Kappa 1.0 T-GDI)
1. Engine oil filler cap
2. Brake/clutch fluid reservoir
3. Positive battery terminal
4. Negative battery terminal
5. Fuse box
6. Air cleaner
7. Radiator cap
8. Engine coolant reservoir
9. Engine oil dipstick
10. Windshield washer fluid reservoir

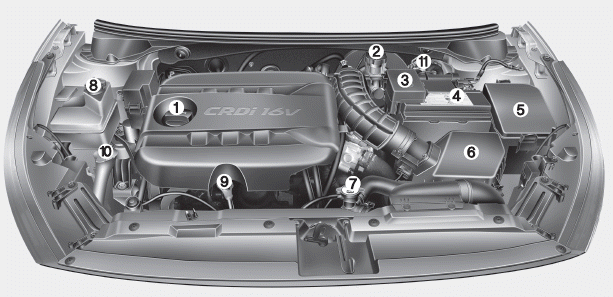

■ Diesel engine (UII)
1. Engine oil filler cap
2. Brake/clutch fluid reservoir
3. Positive battery terminal
4. Negative battery terminal
5. Fuse box
6. Air cleaner
7. Radiator cap
8. Engine coolant reservoir
9. Engine oil dipstick
10. Windshield washer fluid reservoir
11. Fuel filter
Instrument panel overview
1. Instrument cluster
2. Horn
3. Steering wheel audio control
4. Cruise control switch
Speed limiter control switch
Cluster display mode conversion
switch
5. Driver’s air bag
6. Ignition ...
