Kia Cee'd: Fuse/relay panel description / Engine compartment fuse panel (Diesel engine only)
✽ NOTICE
The actual fuse/relay panel label may differ from equipped items.

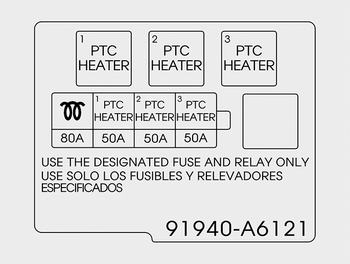

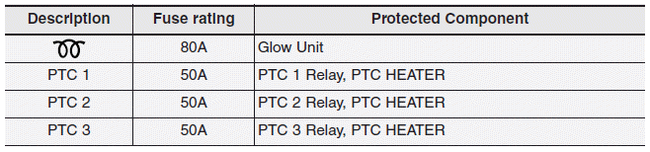

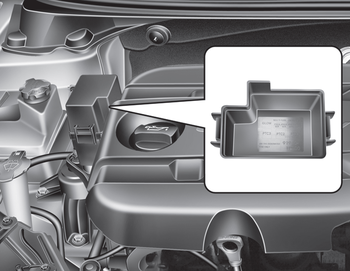

Engine compartment fuse panel
(for diesel engine)
✽ NOTICE
The actual fuse/relay panel label may
differ from equipped items.
