Kia Cee'd: Windshield Wiper/Washer / Heated Washer Nozzle Repair procedures

Kia Cee'd JD Service Manual / Body Electrical System / Windshield Wiper/Washer / Heated Washer Nozzle Repair procedures

Removal

1.	Remove the cowl top cover. (Refer to the BD group - "Cowl Top Cover")

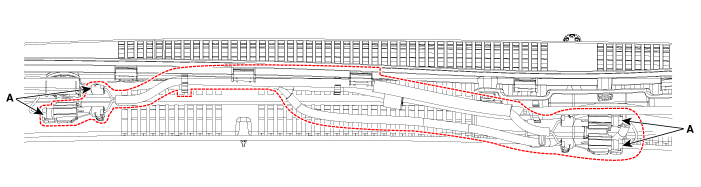

2.	Disconnect the heated washer nozzle connectors (A).

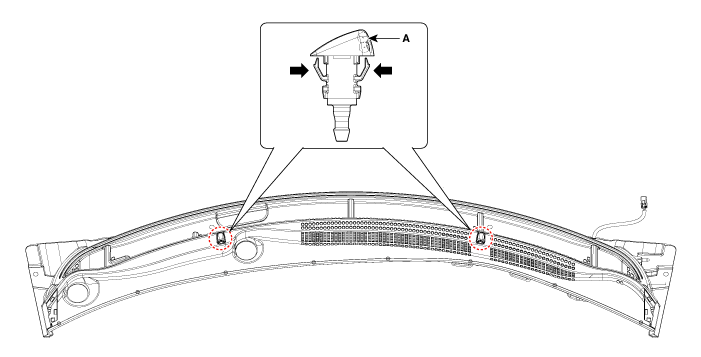

3.	Remove the heated washer nozzle (A) after releasing the fixed hooks.

Installation

1.	Install the heated washer nozzle.

2.	Connect the heated washer nozzle connectors.

3.	Install the cowl top cover.
