Inspection

Speedometer

1.	Adjust the pressure of the tires to the specified level.

2.	Drive the vehicle onto a speedometer tester. Use wheel chocks (A) as appropriate.

Check if the speedometer indicator range is within the standard values.

Do not operate the clutch suddenly or increase/ decrease speed rapidly while testing.

Tire wear and tire over or under inflation will increase the indication error.

[km/h]

Velocity(Km/h)	Tolerance(Km/h)
20	+3.0 +0.5
40	+5.8 +3.3
60	+6.2 +3.7
80	+7.1 +4.1
100	+7.5 +4.5
120	+7.9 +4.9
140	+9.4 +5.9
160	+10.4 +6.9
180	+11.4 +7.9
200	+12.4 +8.9
220	+13.4 +9.9
240	+14.4 +10.9

[mph]

Velocity(mph)	Tolerance(mph)
20	+3.0 +1.0
40	+4.9 +2.9
60	+6.8 +4.8
80	+7.5 +5.0
100	+8.2 +5.2
120	+8.7 +5.7
140	+9.2 +6.2
160	-

Tachometer

1.	Connect the GDS to the diagnostic link connector or install a tachometer.

With the engine started, compare the readings of the tester with that of the tachometer. Replace the tachometer if the tolerance is exceeded.

1)	Reversing the connections of the tachometer will damage the transistor and diodes inside.

2)	When removing or installing the tachometer, be careful not to drop it or subject it to severe shock.

Revolution (rpm)	Gasoline	Diesel
Revolution (rpm)	Tolerance (rpm) Max 8,000 rpm	Tolerance (rpm) Max 6,000 rpm
1,000	± 100	± 100
2,000	± 100	± 100
3,000	± 100	± 100
4,000	± 100	± 100
5,000	± 100	± 100
6,000	± 100	± 100
7,000	± 100
8,000	± 100

Fuel Gauge

1.	Disconnect the fuel sender connector from the fuel sender.

2.	Remove the fuel pump assembly.

Check motor operation by fuel pump connector (A) connecting power (No.4) and ground (No.5).

No.	Description
1	Fuel sender signal
2	-
3	Fuel sender ground
4	-
5	Fuel pump motor (+)
6	Fuel pump motor (-)

Main Fuel Gauge Sender

1.	Turn the ignition switch OFF, and then remove battery (-) cable.

2.	Remove the fuel pump assembly.

Using an ohmmeter, measure the resistance between terminals 1 and 3 of sender connector (A) at each float level.

No.	Description
1	Fuel sender signal
2	-
3	Fuel sender ground
4	-
5	Fuel pump motor (+)
6	Fuel pump motor (-)

Also check that the resistance changes smoothly when the float is moved from "E" to "F".

Position	Resistance(Ω)	Capacity (ℓ)
E	197 ~ 203	3.7
1/2	64.2 ~ 68.2	26.7
Sender (F)	6 ~ 10	52.6

If the height resistance is unsatisfied, replace the fuel sender as an assembly.

After completing this test, wipe the sender dry and reinstall it in the fuel tank.

Brake Fluid Level Warning Switch

1.	Remove the connector (A) from the switch located at the brake fluid reservoir.

2.	Verify that continuity exists between switch terminals 1 and 2 while pressing the switch (float) down with a rod.

Brake Fluid Level Warning Lamp

1.	Ignition "ON"

2.	Release the parking brake.

3.	Remove the connector from the brake fluid level warning switch.

4.	Ground the connector at the harness side.

5.	Verify that the warning lamp lights.

Parking Brake Switch

The parking brake switch (A) is a pulling type. It is located under the parking brake lever. To adjust, move the switch mount up and down with the parking brake lever released all the way.

1.	Check that there is continuity between the terminal and switch body with the switch ON (Lever is pulled).

2.	Check that there is no continuity between the terminal and switch body with the switch OFF (Lever is released). If continuity is not as specified, replace the switch or inspect its ground connection.

Door Switch

Remove the door switch and check for continuity between the terminals.

Seat Belt Switch

1.	Remove the connector from the switch.

Check for continuity between terminals.

Seat belt condition	Continuity
Fastened	Non-conductive (∞Ω)
Not fastened	Conductive (Ω)

Seat Belt Warning Lamp

With the ignition switch turned ON, verify that the lamp glows.

Seat belt condition	Warning lamp
Fastened	OFF
Not fastened	ON

Diagnosis with GDS

1.	It will be able to diagnose defects of CLU with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.

2.	Select model and "BCM".

3.	Select the "Cluster Moduel" to check.

4.	Select "Input/output monitoring", if you will check current data of instrument cluster.

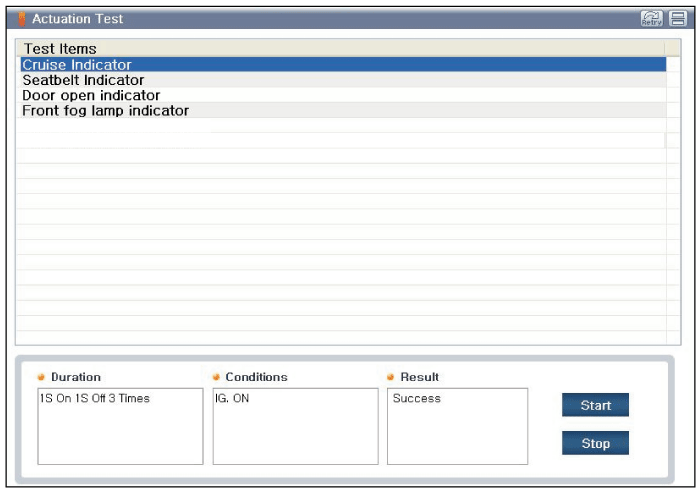

5.	If you will check each module data operation forcefully, select "Actuation test".

6.	To check the DTC of the each module, select "DIAGNOSTIC TROUBLE CODES".

CLU Variant Coding

After replacing the cluster with a new one, must be performed the “Variant Coding” procedure.

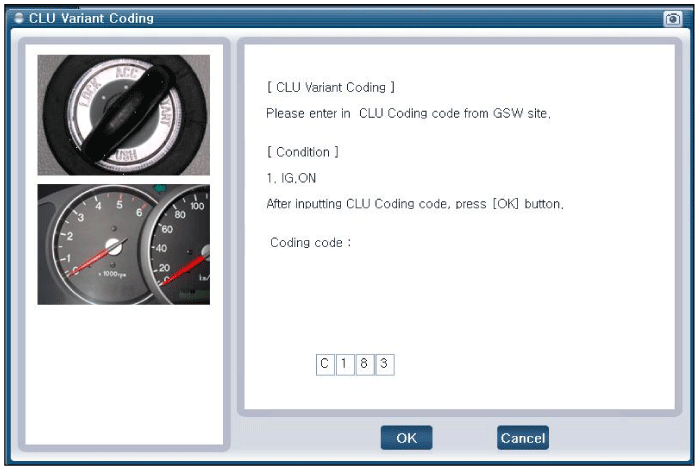

1.	Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

2.	Select model and "BCM".

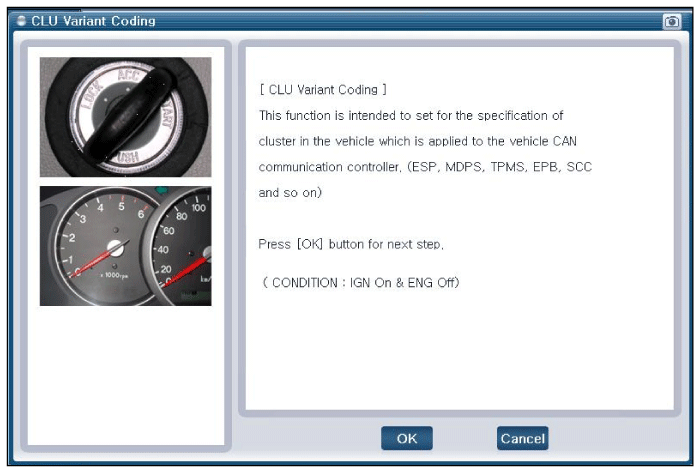

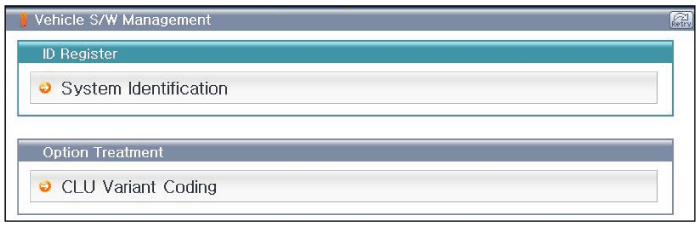

3.	Select Variant coding mode to perform.

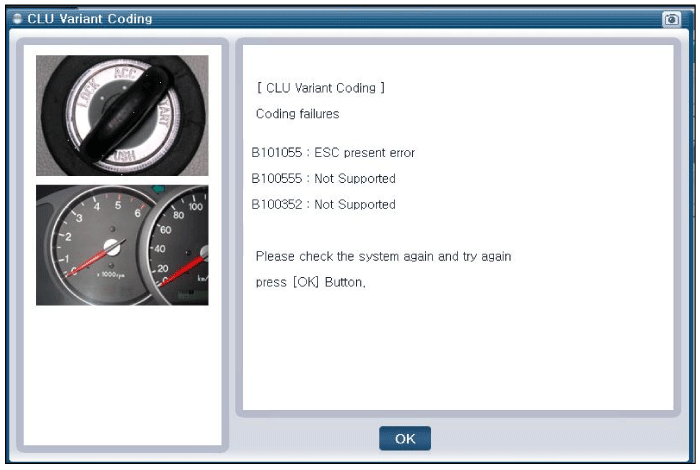

4.	If the trouble codes occurred when performing variant coding, try the CLU variant coding again after checking the installation status of CLU system.

Removal

•	When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Take care not to scratch the body surface.

•	Put on gloves to protect your hands.

1.	Disconnect the negative (-) battery terminal.

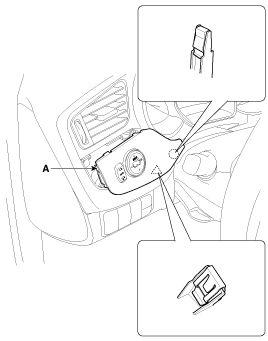

2.	Using a screwdriver or remover, remove the crash pad garnish [LH] (A).

3.	Disconnect the power door mirror switch connector (A).

4.	Using a screwdriver or remover, remove the steering column upper shroud panel (A).

5.	Using a screwdriver or remover, remove the cluster fascia cylinder panel (A).

6.	Using a screwdriver or remover, remove the center fascia panel (A).

7.	Disconnect the start/stop button connector (A).

8.	After loosening the mounting screws, then remove the center airvent duct (A).

9.	Disconnect the hazard switch connector (A) and trip switch connector (B).

10.	After loosening the mounting screws, then remove the side airvent duct [LH] (A).

11.	After loosening the mounting screws, then remove the cluster fascia upper panel (A).

12.	Remove the cluster (A) after loosening screws and disconnecting a connector (B).

Installation

1.	Install the cluster to the crash pad.

2.	Install the cluster fascia upper panel, side airvent duct [LH], crash pad garnish [LH] and center airvent duct.

3.	Install the cluster fascia cylinder panel, center fascia panel, shroud panel and crash pad lower panel.
