Kia Cee'd: Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Troubleshooting

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Troubleshooting

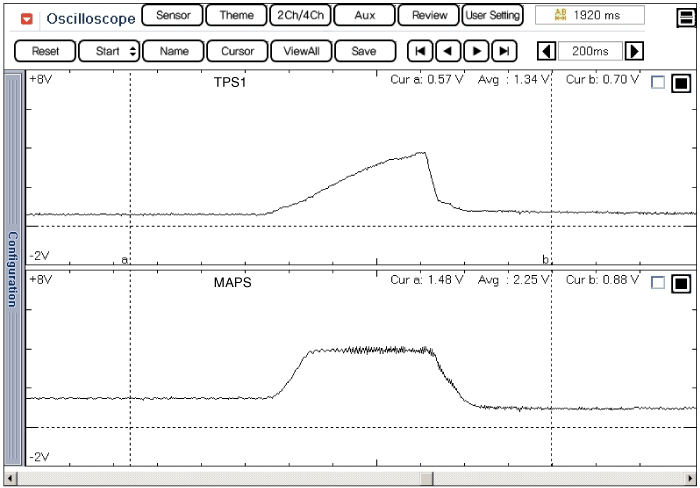

Signal Waveform

Manifold Absolute Pressure Sensor (MAPS) Specifications
Specification   Pressure [kPa (kgf/cm², psi)] Output Voltage (V) 20.0 (0.20, 2.9) 0.79 46.7 (0.47, 6.77 ...

Manifold Absolute Pressure Sensor (MAPS) Schematic diagrams
Circuit Diagram ...
