Kia Cee'd: Bluetooth® Wireless Technology Audio Mode / Pairing through [PHONE] Setup

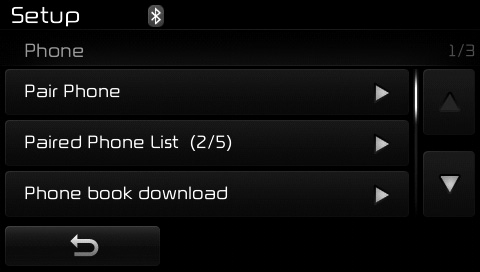

Press the
key Select
[Phone] Select [Pair Phone]
The following steps are the same as those described in the section "When No Devices have been Paired" on the previous page.
✽ NOTICE
- The waiting period during phone pairing will last for one minute. The pairing process will fail if the device is not paired within the given time. If the pairing process fails, you must start the process from the beginning. • Generally, most Bluetooth® Wireless Technology devices will automatically connect once pairing is complete. However, some devices may require a separate verification process to connect. Check to see whether Bluetooth® Wireless Technology has been properly connected within your mobile phone.
- List of paired Bluetooth® Wireless
Technology devices can be viewed
at [Phone] [Paired Phone
List].
Pairing PHONE key on the Steering Remote
Controller
When No Devices have been
Paired
1. Press the key or the
key on the steering remote
controller.
The following screen is displayed.
2. Press the button to enter the
Pair Phone screen.
...
Connecting a Device
Press the key - Select
[Phone] - Select [Paired Phone List]
(1) Connected Phone : Device that is
currently connected
(2) Paired Phone : Device that is
paired but not connected
From the pair ...
