Kia Cee'd: Cooling System / Radiator Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cooling System / Radiator Components and components location

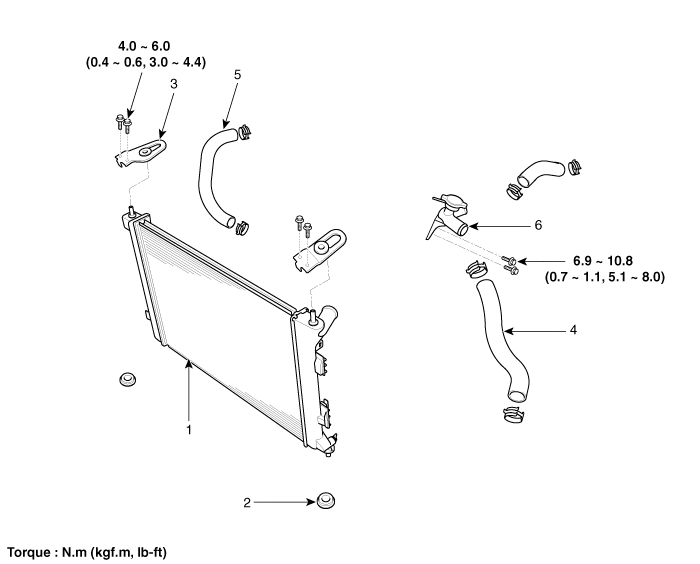

Components

1. Radiator
2. Mounting insulator
3. Radiator upper mounting bracket

4. Radiator upper hose
5. Radiator lower hose
6. Filler neck assembly

Coolant Repair procedures

Replacement And Air Bleeding Never remove the radiator cap when the engine is hot. Serious scalding could b ...

Radiator Repair procedures

Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the air cleaner assembly. (Refer to Intake and ...
