Kia Cee'd: Rear Door / Rear Door Outside Handle Repair procedures

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Outside Handle Repair procedures

Replacement

[Rear Door Outside Handle]

1.	Remove the hole plug (B).

After loosening the mounting bolt, then remove the rear door outside handle cover (A).

Tightening torque :

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

3.	Remove the rear door outside handle (A) by sliding it rearward.

Install in the reverse order of removal.

•	Make sure the door locks/unlocks and opens/closes properly.

[Rear Door Outside Handle Casing]

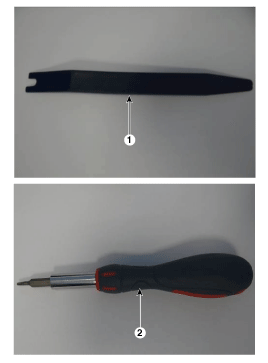

•	In order to remove the door outside handle casing, use the tools shown in the following figure [Tooling Diagram]

① Upholstery clip remover

② Screwdriver (Hexagon type No. 6)

1.	Remove the rear door outside handle.

2.	Remove the mounting screw (A).

3.	Slide the handle pad forward for better access (B).

Using the Upholstery clip remover dissasemble the handle casing (C).

•	Make sure not to damage or scratch plastic parts or painted surface.

Install in the reverse order of removal.

•	Make sure the door locks/unlocks and opens/closes properly.
