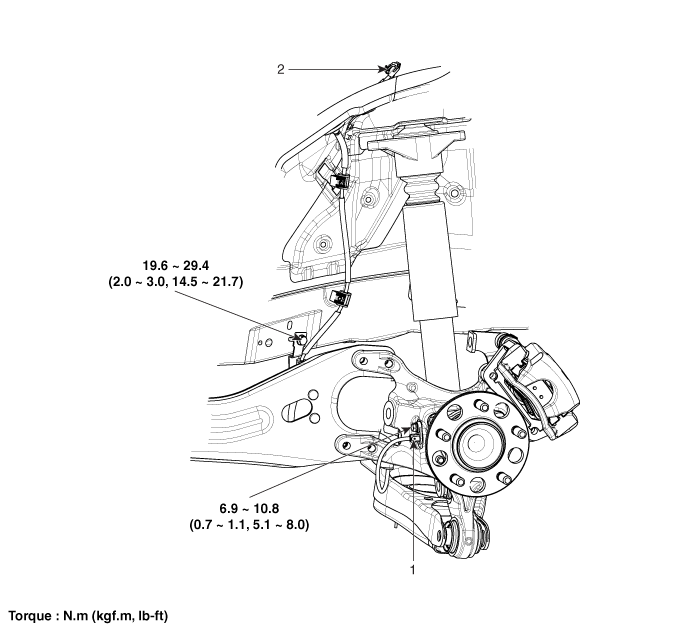

Kia Cee'd: ABS(Anti-Lock Brake System) / Rear Wheel Speed Sensor Components and components location



Front Wheel Speed Sensor Repair procedures

Removal 1. Remove the front wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) ...

Rear Wheel Speed Sensor Repair procedures

Removal 1. Remove the rear wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) ...
