Inspection

Lighting Switch Inspection

With the multifunction switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.

Lighting Switch (Auto Light)

Lighting Switch

Dimmer And Passing Switch

HU : Head lamp high beam

HL : Head lamp low beam

P : Head lamp passing switch

Turn Signal Switch

Rear Fog Lamp

Front & Rear Fog Lamp

Wiper And Washer Switch Inspection

With the multifunction switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.

Wiper Switch

Washer Switch

Rear Wiper Switch

Rear Washer Switch

Inspection (With GDS)

1.	Check BCM input/output specification of multifunction switch using the GDS. If the specification is abnormal, replace the lamp or wiper switch.

2.	If diagnosis is required on the multifunction switch, select model and "BCM".

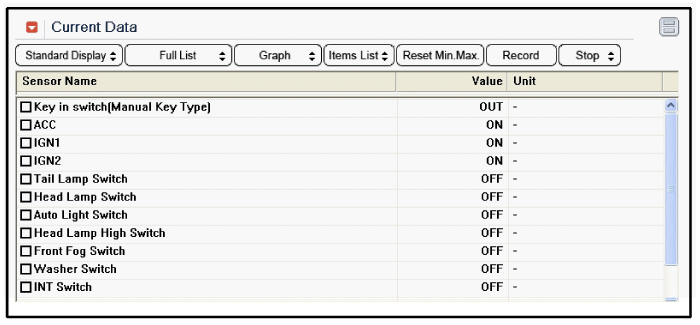

3.	To consult the present input/output value of BCM, "Current DATA". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door, locks, outside mirror, wiper, auto-light and transmitters etc.

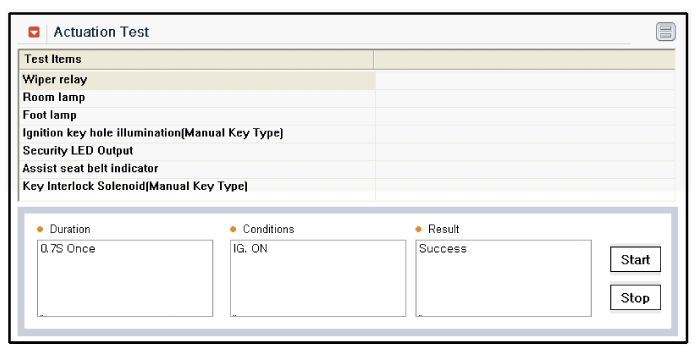

4.	To perform compulsory operation on BCM input factors, select "ACTUATION TEST".

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the steering wheel. (Refer to Steering System - "Steering Wheel")

3.	Remove the steering column shroud lower/upper panel. (Refer to Body - "Steering Column Shroud Panel")

4.	Remove the clock sping. (Refe to Restraint - "Driver Airbag (DAB) and Clock Spring")

5.	Disconnect the lighting switch connector (A) and wiper & washer switch connector (B).

6.	If it is necessary to remove. The wiper & washer switch (A) only, release the lock of wiper switch using tool without removing the steering wheel and the clock spring.

7.	Remove the multifunction switch assembly (A) after loosening 2 screws.

Installation

1.	Install the multifunction switch.

2.	Install the clock spring.

3.	Install the steering column upper and lower shrouds.

Install the steering wheel.

Make sure the multifunction switch connectors are plugged in properly.

Components and components location

Components (1) 1. Steering column 2. Lighting switch 3. Wiper switch 4. Screw 5. Clock spring Components (2) ...
