Kia Cee'd: Driveshaft Assembly / TJ Joint Components and components location

Kia Cee'd JD Service Manual / Driveshaft and axle / Driveshaft Assembly / TJ Joint Components and components location

Components

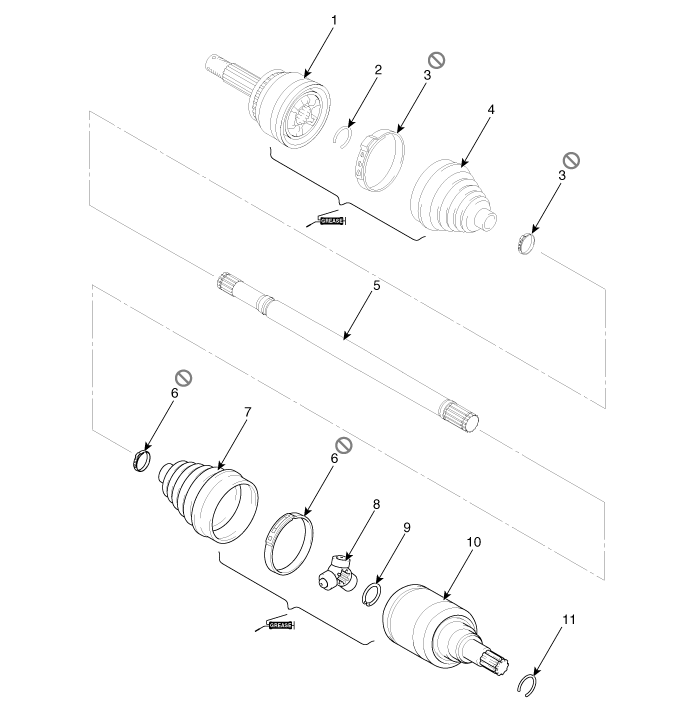

[LH]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot

5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly

9. Retainer ring
10. TJ housing
11. Housing circlip

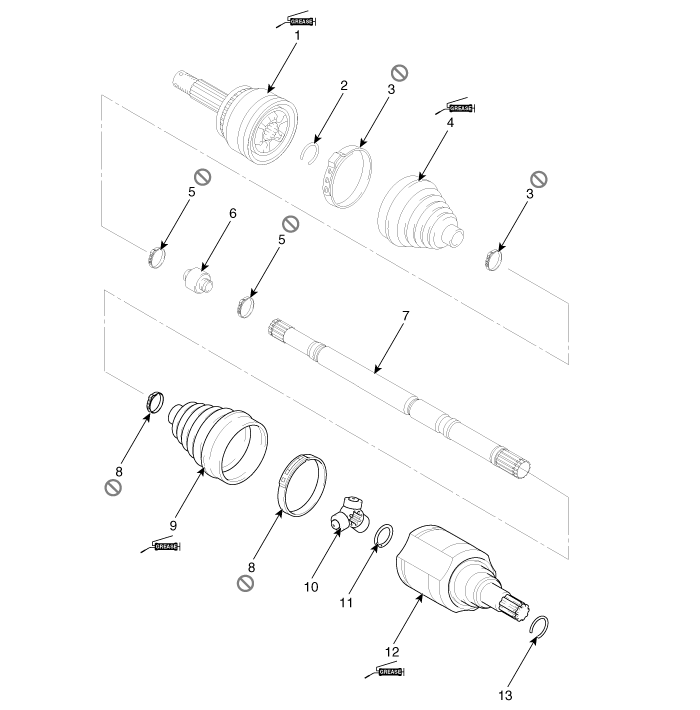

[RH]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot

5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band

9. TJ boot
10. Spider assembly
11. Retainer ring
12. TJ housing

13. Housing circlip

Front Driveshaft Repair procedures

Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front w ...

TJ Joint Repair procedures

Replacement • Special grease must be applied to the driveshaft joint. Do not s ...
