Kia Cee'd: Manual climate control system / To defrost outside windshield

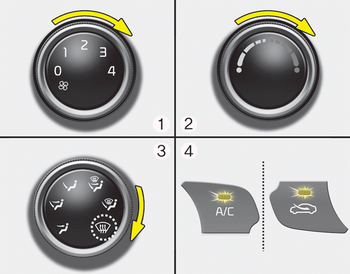

1. Set the fan speed to the highest position.
2. Set the temperature to the hottest position.
3. Select the
position.
4. The outside (fresh) air and air conditioning will be selected automatically.
To defog inside windshield
1. Set the fan speed to the desired position.
2. Select desired temperature.
3. Select the position.
4. The outside (fresh) air will be selected
automatically. If the position is
selected, ...
