Kia Cee'd: Starting System / Troubleshooting

Kia Cee'd JD Service Manual / Engine Electrical System / Starting System / Troubleshooting

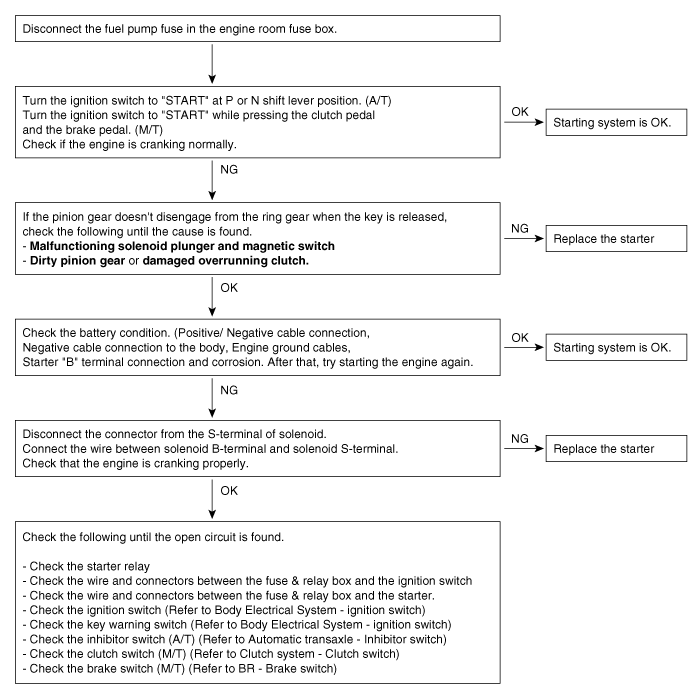

Troubleshooting

•	The battery must be in good condition and fully charged for this troubleshooting.
