Kia Cee'd: Lane Departure Warning System (LDWS) / Lane Departure Warning System (LDWS) Unit Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Lane Departure Warning System (LDWS) / Lane Departure Warning System (LDWS) Unit Components and components location

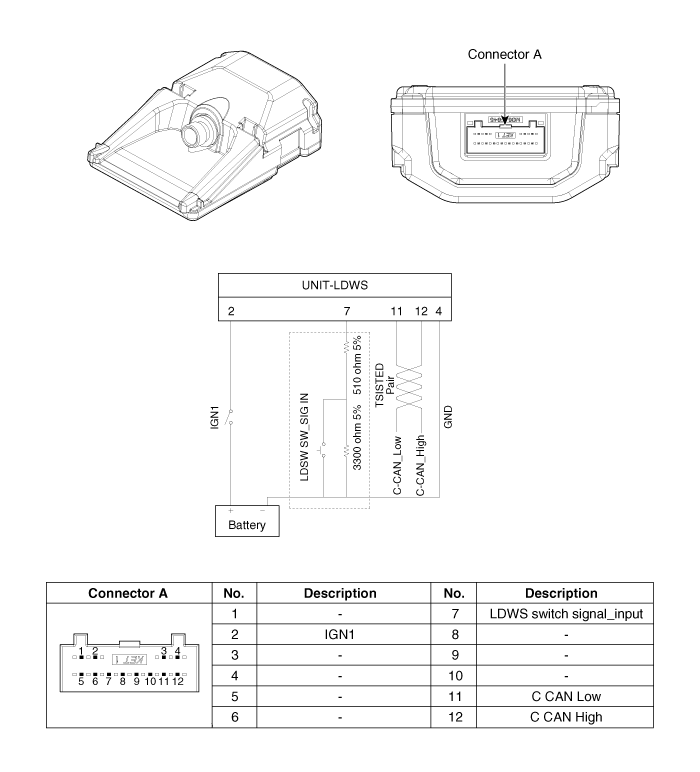

Components

Repair procedures
Service Point Target Auto Calibration (SPTAC) This procedure provides a way to calibrate the camera by having the service technician align the car to a well lit simulated straig ...

Lane Departure Warning System (LDWS) Unit Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the mirror wiring cover (A). 3. ...
