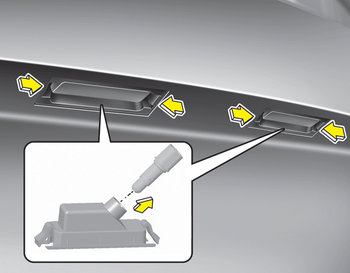

Kia Cee'd: Light bulbs / License plate light bulb replacement
1. Turn off the engine.
2. Remove the bulb assembly by pressing the tabs.
3. Remove the socket by turning it counterclockwise.
4. Remove the bulb by pulling it straight out.
5. Install a new bulb.
6. Reinstall the bulb assembly securely with the retaining screws.
High mounted stop light bulb
replacement
If the light does not operate, we recommend
that the system be checked by an
authorized Kia dealer. ...
Other information:
Kia Cee'd JD Service Manual: Components and components location
Components
1. Union bolt
2. Gasket
3. Tube joint
4. Clutch tube
5. Valve plate
6. Valve spring
7. Bleeder screw
8. Release cylinder
9. Return spring
10. Piston
11. Boot
12. Push rod
...
Kia Cee'd JD Service Manual: Components and components location
Component Location
1. Audio unit
2. Tweeter speaker
3. Antenna cable connector
4. Roof antenna (Radio)
5. Front door speaker
6. Rear door speaker
7. Antenna feeder cable
8. Rear camera
...
