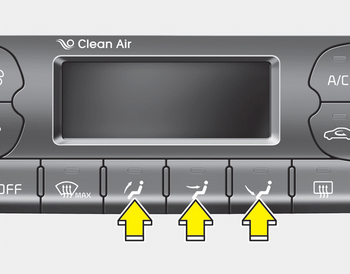

The mode selection button controls the direction of the airflow in the vehicle. If you push the button once, the corresponding switch will turn on, and if you push the button again, the switch will turn off.

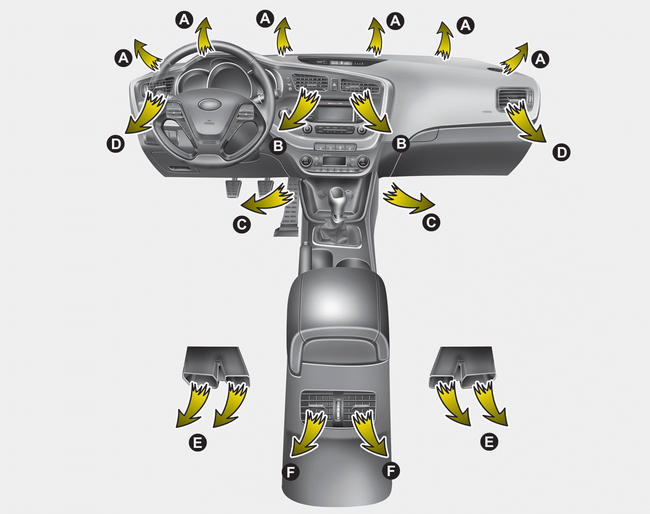

Face-Level (B, D, F*)
Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.
Floor-Level (A, C, D, E)
Most of the air flow is directed to the floor.
Defrost-Level (A, D)
Most of the air flow is directed to the windshield.
Also you may select 2~3 modes at the same time.
- face () + floor (
)
mode
- face () + defrost (
)
mode
- floor () + defrost (
)
mode
- face () + floor (
)
+ defrost (
)
mode

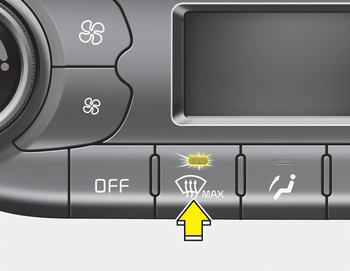

Maximum (MAX) defrost mode
When you select the MAX defrost mode, the following system will set automatically:
To turn the MAX defrost mode off, press the mode button or MAX defrost button again or AUTO button.
Instrument panel vents

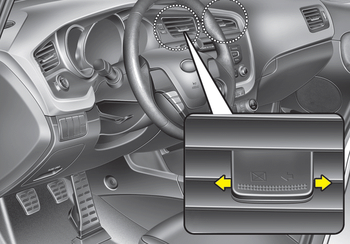

The outlet vents can be opened or closed separately using the thumbwheel or vent control lever.

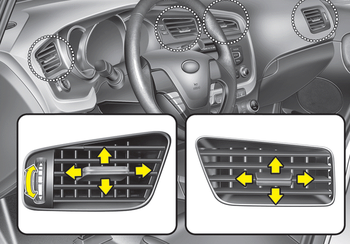

Also, you can adjust the direction of air delivery from these vents using the vent control lever as shown.
