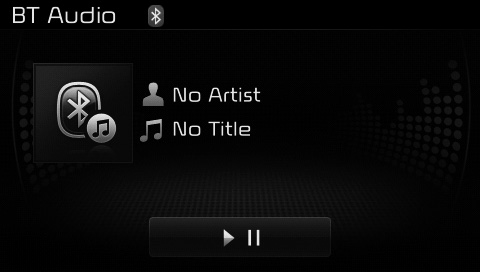

Kia Cee'd: Bluetooth® Wireless Technology Audio Mode / Playing/Pausing Bluetooth® Wireless Technology Audio
Once a Bluetooth® Wireless Technology device is connected, the mode will automatically start.
While playing, press the
button
to pause and press button to
play.
✽ NOTICE
The play/pause feature may operate differently depending on the mobile phone.
Changing Files
Press the
key to move to
the previous or next file.
Setting Connection
If a Bluetooth® Wireless Technology
device has not been connected,
press the
key [Phone] button
to display the Bluetooth® Wireless
Technology connection screen.
It is possible to use the pair phone, connect/disconnect and delete features from your Bluetooth® Wireless Technology phone.
✽ NOTICE
If music is not yet playing from your mobile device after converting to Bluetooth® Wireless Technology Audio mode, pressing the play button once may start playing the mode. Check to see that music is playing from the Bluetooth® Wireless Technology device after converting to Bluetooth® Wireless Technology Audio Mode.
Using Bluetooth® Wireless
Technology Handsfree
Bluetooth® Wireless Technology
refers to a short-distance wireless
networking technology which uses
a 2.45GHz frequency to connect
various devices within a certain
distance.
Suppo ...
