Kia Cee'd: Fuse/relay panel description / Engine compartment fuse panel (Diesel engine only)
✽ NOTICE
The actual fuse/relay panel label may differ from equipped items.

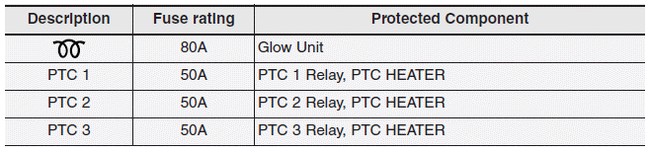

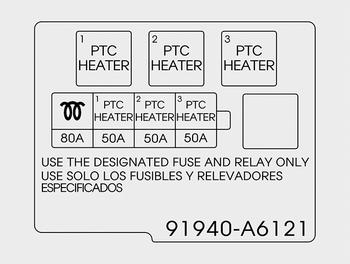

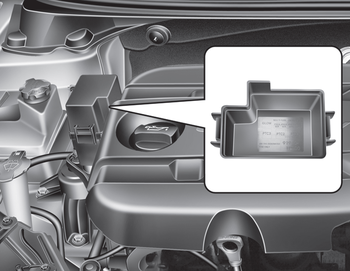

Engine compartment fuse panel
(for diesel engine)
✽ NOTICE
The actual fuse/relay panel label may
differ from equipped items.
Engine compartment main fuse panel (for gasoline engine MPI, GDI)
Engine compartment main fuse panel (for ga ...
Light bulbs
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned to
the “LOCK” position (smart key:
turn off the ...
